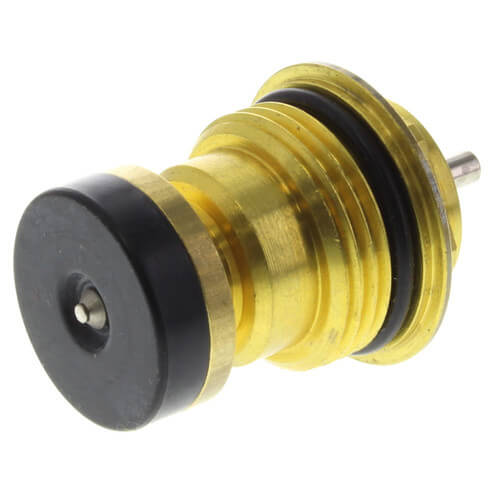

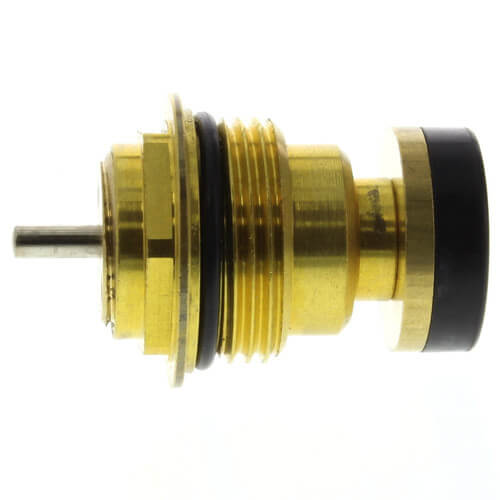

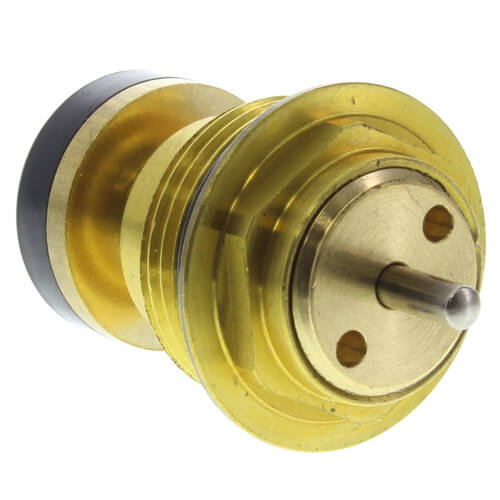

Replacement Valve Cartridge for 1" and 1-1/4" MZV Valves
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MZV526-RP has been discontinued
Discontinued October 24, 2019
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
1-1/4", 1"
24V
240°F Max Temp
MZV Zone Valves
125 MAX PSI
0.25 Amps
Description
–
Replacement valve cartridge for 1" (MZV526, MZV526E) and 1-1/4" (MZV527, MZV527E) valves
Specs
–
| Size: | 1-1/4" 1" |
|---|---|
| Application: | Replacement Part |
| Voltage: | 24V |
| Max Temp (F): | 240°F |
| Hertz: | 60 |
| Used With: | MZV Zone Valves |
| Max Pressure (PSI): | 125 |
| Amperage: | 0.25 |
| Time Cycle: | 10-20 Seconds Open, 3-6 Seconds Close |
| Position: | Normally Closed |
| Wiring: | 18" Leads |
| Material: | Bronze |
| Auxiliary Switch: | No |
| Max Close-Off PSI: | 17.5 psi |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.75 out of 8 reviews
100% would recommend this product
5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-8 of 8 reviews
Perfect replacements for a 4 zone valve manifold.
When I first looked at this 4 zone valve manifold, it looked like the entire unit would need to be replaced, but I found that Supply House sold a valve cartridge replacement. I tried it and it fit perfectly and works well. It was quick and easy to replace all four of them, finishing the job in minutes instead of hours.
Carl "A Little Help"
Lakewood, CO
7 years ago
Verified Buyer
Was this review helpful to you?
Worked Great
Worked as described
Kid
Chicagoland
8 years ago
Verified Buyer
Was this review helpful to you?
Perfect replacement
This is the perfect replacement for my leaking and sticking Wirsbo/Upinor valves. I needed a ratchet wrench to engage the old valve due to the short height of the hex. This replacement screwed right in, closed then backed out the adjuster 1 1/2 turns and voila!
Phil
Angel Fire, NM
9 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy this valve again
The 3/4 nut used to screw the valve into the manifold could be deeper so you could get a wrench around it.
Joe
RI
10 years ago
Verified Buyer
Was this review helpful to you?
Rebuilding a boiler system can be troublesome
Rebuilding my boiler system was quick and almost painless with these parts all are in service and working well
none
lyman, wyoming
11 years ago
Verified Buyer
Was this review helpful to you?
Easy to install
Saved $$$ and time by inserting the Replacement Valve Cartridge into the existing MZV520 valve housing instead of having to cut out the old valve and re-solder a new valve unit. So glad that SupplyHouse has these replacements available.
Fixit Lady
Bountiful, UT
11 years ago
Verified Buyer
Was this review helpful to you?
hard to find valve
This was hard to find this valve cartage fits the 1 inch sweat zone valve sold by wisbro which is now upnor floor heat they did not know where to find it the only clue I had was the word sparco 526 on the side thanks for sending me a picture of the cartage it it a little different but it works
Wayne
Flagstaff Arizona
16 years ago
Verified Buyer
Was this review helpful to you?
[...]great deal !!!!!!
I had a problem with my infloor heating system and needed to replace the valves.Finding this service was great. I have used others but this one by far was the fastist and gave the best price.I keep them in my address book so I will have quick access and I can get what I need fast.Thank you again.
Ken
Louisburg NC
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: does this work with 1/2"? According to description, this one works for 1/2" and 3/4", I have a 1/2" cartridge, and the picture looks like a 3/4" cartridge. So, does this one really compatible with 1/2" cartridge? Thanks
Asked by Alex 11 years ago
Add your answer
-
1/2" & 3/4" zone valves both use the same cartridge. The picture may look different because they changed the design some time ago.
Was this review helpful to you?
Q: What is the difference between the 1/2-3/4 replacement zone valve cartridge and the 1 - 1-1/4 replacement zone valve? I can't tell which one I have. I assumed it was the 1/2-3/4 and ordered a new one but the valve stem is shorter than the original and the valve is not closed when the power head is installed and the brass nut is tightened all the way. Is the 1 - 1-/4 valve cartridge stem longer?
Asked by Henry 16 years ago
Add your answer
Verified Reply- PexSupply StaffYou will need to find the model number of your original valve. The 1" and 1 1/4" replaces the valve cartridge for MZV526 and MZV527 valves. The 1/2" and 3/4" is intended for use with models MZV524 and MZV525.
