Product Highlights
–
Make COM-NC on pressure fall to setpoint, Make COM-NO on pressure rise to setpoint plus differential
30 MAX PSI
Panel
3-1/4"
1-3/4" Depth
Description
–

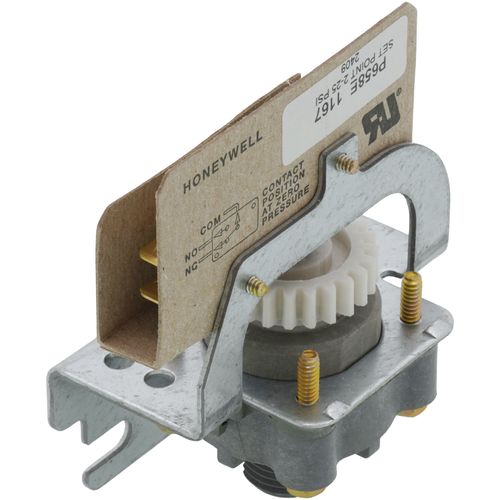

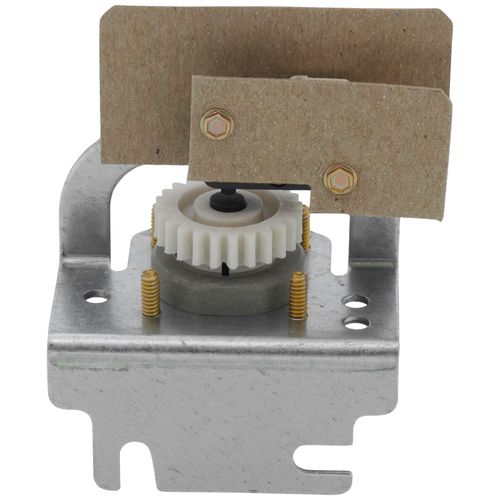

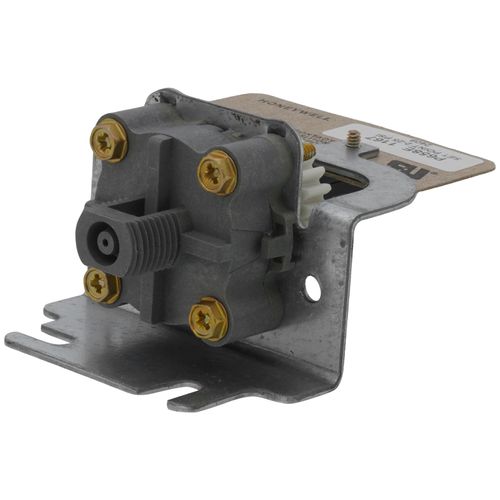

Pneumatic-electric switches (P658A,B,E and F) used to convert a pneumatic signal from a controller to an electrical switching action (SPDT) to provide start and stop control of equipment such as fans and pumps. Replacement devices available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic/ electric switches.
Features
Specifications
Features
- Models available for surface or panel mounting.
- Barb protected by open cage.
- All ferrous parts plated to prevent corrosion.
- Factory calibrated setpoint field adjustable to meet job requirements.
- Neoprene diaphragm element.
Specifications
- Description: Panel Mounted Pneumatic / Electric Switch. No Factory Calibration.
- Switch Type: Pneumatic/Electric Switch
- Switching Action: Make COM-NO on pressure rise to setpoint plus differential
- Switching Action: Make COM-NC on pressure fall to setpoint
- Switch Operation: Converts pneumatic signal to electrical switching action (SPDT)
- Air Connections: Barb fitting for 1/4 in. (6 mm) O.D. plastic tubing
- Electrical Connections: Screw terminals
- Frequency: 60 Hz
- Maximum Safe Operating Pressure (psi): 30 psi
- Differential Pressure Range (psi): 2 psi
- Motor Load: 3/4 hp @ 125, 250 or 277 Vac
- Pilot Duty Ratings: 750 VA @ 125, 250 or 277 Vac
- Resistive Load: 25A @ 125, 250 or 480 Vac
- Setpoint Range (Field Adjustable) (psi): 2 to 25 psi
- Mounting: Panel Mount
- Operating humidity Range: 5 to 95% RH, 80 F (27C) max wet bulb
- Temperature Range: 40 F to 140 F
- Dimensions: 3 1/4 in. high x 2 7/8 in. wide x 1 3/4 in. deep
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Application: | Pneumatic Instrument Controls |
| Switch: | Pneumatic Electric |
| Switch Action: | Make COM-NC on pressure fall to setpoint Make COM-NO on pressure rise to setpoint plus differential |
| Air Connections: | Barbed fitting for 1/4" O.D. plastic tubing |
| Electric Connection: | 1/4" Quick-Connect Male |
| Max Pressure (PSI): | 30 |
| Motor: | 3/4 hp @ 250 Vac 3/4 hp @ 125 Vac 3/4 hp @ 277 Vac |
| Pilot Duty Rating: | 720 VA @ 277 Vac 720 VA @ 125 Vac 720 VA @ 250 Vac |
| Setpoint: | 2 to 25 psi |
| Calibration: | none |
| Mount: | Panel |
| Humidity Range: | 5 to 95% RH |
| Height: | 3-1/4" |
| Width: | 2-7/8" |
| Depth (Inches): | 1-3/4" |
