Q667B1004 has been discontinued
Discontinued April 30, 2026
This product was discontinued by the manufacturer.
Description
–

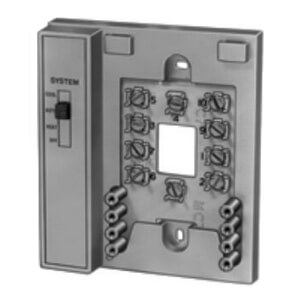

Provide manual switching for T7067 Thermostat/Transmitters.
Features
Specifications
Features
- Mount directly on wall or on vertical 2 x 4 in. outlet box.
- T7067 mounts on subbase with mounting screws which also complete electrical connections between thermostat/transmitter and subbase.
- When fan switch is set to AUTO, the fan is intermittent in HEAT and continuous in system AUTO or COOL.
Specifications
- Application: Heat Pump Systems, Split Systems
- Power consumption: 1A at 24 Vac Full Load
- Switch Positions (system): HEAT-OFF-COOL-AUTO
- Switch Positions (Fan): AUTO/ON
- Comments: Number of stages of heating and cooling depends on the chosen Logic Panel
Specs
–
| Application: | Heat Pump Systems |
|---|
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: Can I switch out this subbase for a digital one?
Asked by eallen123 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo the entire Q667; T7067; W973 system would need to be replaced. This would be a major recontrol.
