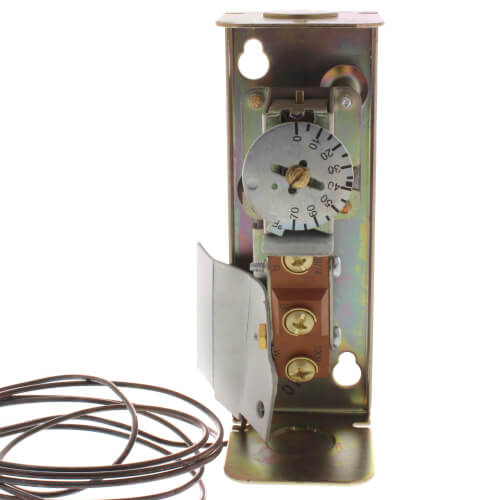

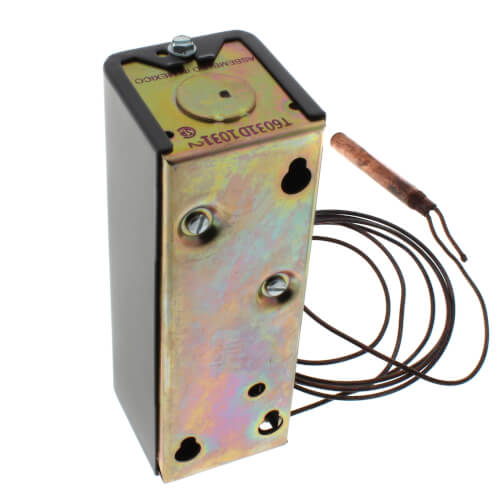

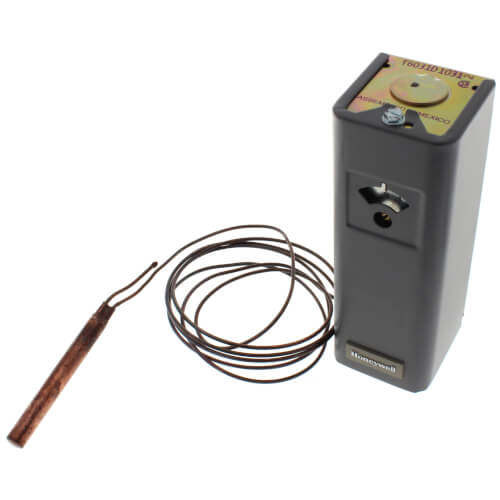

Ambistat Temperature ControAmbistat Temperature Controller, High Limit, 0 F to 70 F
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$324.00 each
In Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v, 240v
70°F, 0° to 70°F Max Temp
5°F
5-5/8"
2-1/8" Depth
Gray
Description
–
Ambient temperature compensated, high-limit controllers for agriculture and industrial applications.
Product Features:
Product Specifications:
Product Features:
- Suitable for line-voltage, low voltage, or millivolt (Powerpile) control of bulk milk tanks, beverage dispensing machines, ice cube machines, dishwashers, crop drying, tobacco curing, and similar applications.
- Enclosed snap action switches available with SPST or SPDT action.
- Models available that make or break on temperature rise.
- Screwdriver adjustment for temperature setting; external knob option.
- Immersion well not included.
Product Specifications:
- Description: Ambistat Temperature Controller, High Limit, 0 F to 70 F
- Application: Ambistat, High Limit, ambient compensated controller
- Type: Remote bulb
- Output Type: Relay
- Output: 1 SPDT
- Voltage: 120 Vac or 240 Vac
- Frequency: 50 Hz
- Frequency: 60 Hz
- Color: Gray
- Contact Ratings (120 Vac): ) 8.0 AFL, 48.0 ALR
- Contact Ratings (240 Vac): 5.1 AFL, 30.6 ALR
- Dimensions (in.): 5-5/8 in. high x 2 in. wide x 2-1/8 in. deep
- Sensor Element: Copper bulb
- Capillary Length: 5.5 ft
- Bulb Size: 3/8 in. diameter x 2-7/8 in. long
- Number of Sensor Inputs: 1
- Setpoint Temperature Range (F): 0 F to 70 F
- Differential Temperature (F): 5 F
- Maximum Operating Temperature: 170 F
Specs
–
| Application: | Ambistat Temperature Controller |
|---|---|
| Output: | Relay SPDT |
| Voltage: | 120v 240v |
| Hertz: | 60 50 |
| Contact Ratings 120v: | 8.0 AFL 48.0 ALR |
| Contact Ratings 240v: | 5.1 AFL 30.6 ALR |
| Width: | 2" |
| Height: | 5-5/8" |
| Depth (Inches): | 2-1/8" |
| Sensor Type: | Copper Bulb |
| Sensor Inputs: | 1 |
| Capillary Length: | 5-1/2 ft. |
| Bulb Size: | 3/8" x 2-7/8" |
| Max Temp (F): | 70°F 0° to 70°F |
| Max Operating Temp: | 170°F |
| Differential: | 5°F |
| Color: | Gray |
