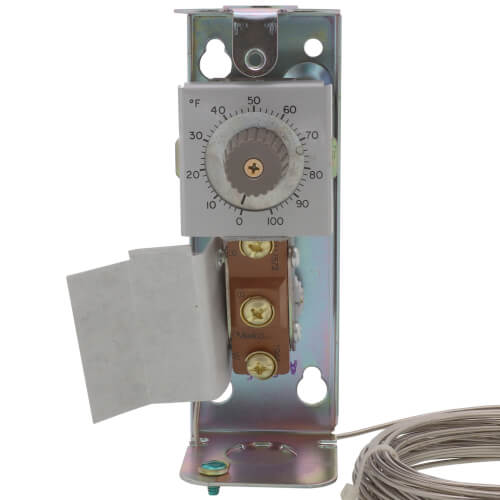

Main product image of Remote bulb Commercial Temperature Controller, 0 F to 100 F, 20 ft. capillary, Stainless steel bulb sensing element

Hover image to zoom

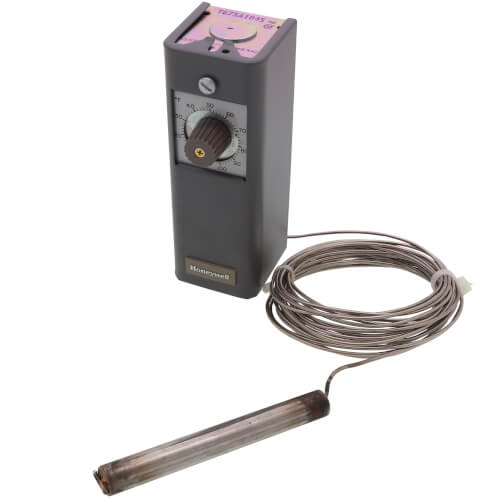

Remote bulb Commercial Temperature Controller, 0 F to 100 F, 20 ft. capillary, Stainless steel bulb sensing element

Name: Remote bulb Commercial Temperature Controller, 0 F to 100 F, 20 ft. capillary, Stainless steel bulb sensing element
Brand: Honeywell
SKU: T675A1045
Price: 617.96 USD
Availability: OutOfStock

Brand:

Honeywell

SKU:

T675A1045

Rating:

(0)

Q&A:

(0)

Remote bulb Commercial Temperature Controller, 0 F to 100 F, 20 ft. capillary, Stainless steel bulb sensing element

Hover image to zoom

T675A1045 has been discontinued

Discontinued June 12, 2023

This product was discontinued by the manufacturer.

MANUALS (2)

Product Highlights

–

277v, 120v, 240v

0° to 100°F, 100°F Max Temp

3° to 10°F

5-5/8"

2-5/8" Depth

Description

–

Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.

Features

Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems.
Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
Controller can be mounted in any position.
Ambient temperature compensation provides good temperature control.
Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
T675A models with fixed differential have an electrical rating of 125 VA at 120/208/240 and 277 Vac.
T675B models have 125 VA pilot duty up to 277 Vac.
T678 models have a maximum connected load of 2000 VA.

Specifications

Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
Output Type: Relay
Type: Remote Bulb
Output: SPDT
Voltage: 120 Vac or 240/277 Vac
Frequency: 50, 60 Hz
Dimensions: 5-5/8 in. high x 2 in. wide x 2-5/8 in. deep
Sensor Element: Copper bulb
Number of Sensor Inputs: 1

Specs

–

Capillary Length:	20'
Application:	Commercial Remote Bulb Temperature
Max Temp (F):	0° to 100°F 100°F
Output:	SPDT Relay
Voltage:	277v 120v 240v
Hertz:	60 50
Contact Ratings 120v:	8.0 AFL 48.0 ALR
Contact Ratings 240v:	30.6 ALR 5.1 AFL
Contact Ratings 277v:	25.2 ALR 4.2 AFL
Height:	5-5/8"
Width:	2"
Depth (Inches):	2-5/8"
Sensor Type:	Stainless Steel Bulb
Sensor Inputs:	1
Bulb Size:	1/2" x 4-3/16"
Max Operating Temp:	125°F
Differential:	3° to 10°F
