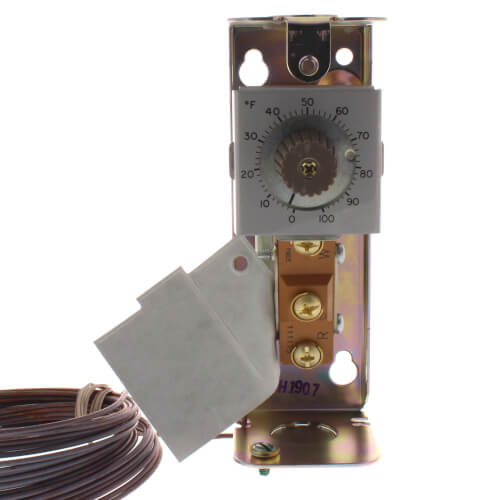

Remote Bulb Commercial Temperature Controller, 5 F to 95 F, 5 ft. Capillary, Copper Bulb Sensing Element
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
We no longer carry T678A1155
Unavailable since August 29, 2026
MANUALS (2)
Product Highlights
–
240v, 277v, 120v
125°F Max Temp
1°F
5°F - 95°F
Description
–
Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.
Features
Specifications
Features
- Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area
- Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems
- Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
- Controller can be mounted in any position
- Ambient temperature compensation provides good temperature control
- Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred
- T678 Models Have a Maximum Connected Load of 2000 VA
Specifications
- Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
- Output Type: Relay
- Type: Remote Bulb
- Output: 2 SPDT
- Voltage: 120 Vac or 240/277 Vac
- Frequency: 50, 60 Hz
- Sensor Element: Copper bulb
- Number of Sensor Inputs: 1
Specs
–
| Application: | Commercial Remote Bulb Temperature |
|---|---|
| Output: | Relay |
| Voltage: | 240v 277v 120v |
| Hertz: | 60 50 |
| Contact Ratings 120v: | 125 VA |
| Contact Ratings 240v: | 125 VA |
| Contact Ratings 277v: | 125 VA |
| Sensor Type: | Copper Bulb |
| Sensor Inputs: | 1 |
| Bulb Size: | 1/2" x 4-3/16" |
| Capillary Length: | 5 ft. |
| Max Temp (F): | 125°F |
| Temperature Range (F): | 5°F - 95°F |
| Differential: | 1°F |
