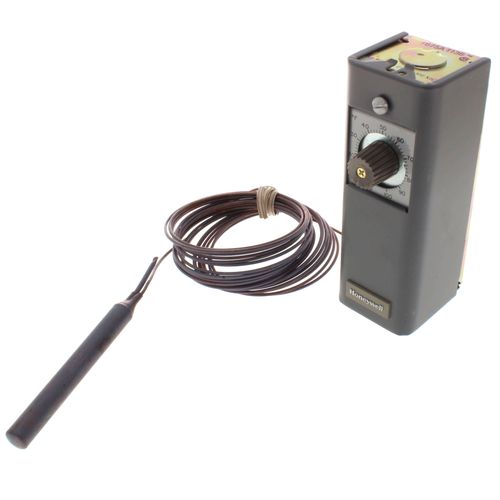

Remote bulb Commercial Temperature Controller (5 to 95 F, 20 ft. capillary)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$631.61 each
In Stock
Get 2 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
240v, 120v, 277v
95°F, 5° to 95°F Max Temp
5°F Min Temp
3° to 10°F (Interstage Dif.), 3° to 10°F
5-5/8"
2-5/8" Depth
Description
–
Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.
Features
Specifications
Features
- Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
- Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems.
- Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
- Controller can be mounted in any position. Ambient temperature compensation provides good temperature control.
- Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
- T678 models have a maximum connected load of 2000 VA.
Specifications
- Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
- Output Type: Relay
- Type: Remote Bulb
- Output: 2 SPDT switch contacts
- Voltage: 120 Vac or 240/277 Vac
- Frequency: 50, 60 Hz
- Dimensions: 5-5/8 in. high x 2 in. wide x 2-5/8 in. deep
- Sensor Element: Copper Bulb
- Number of Sensor Inputs: 1
Specs
–
| Capillary Length: | 20' |
|---|---|
| Application: | Commercial Remote Bulb Temperature |
| Output: | 2 SPDT Relay |
| Voltage: | 240v 120v 277v |
| Hertz: | 50 60 |
| Contact Ratings 120v: | 48.0 ALR 8.0 AFL |
| Contact Ratings 240v: | 5.1 AFL 30.6 ALR |
| Contact Ratings 277v: | 4.2 AFL 25.2 ALR |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-5/8" |
| Sensor Type: | Copper Bulb |
| Sensor Inputs: | 1 |
| Bulb Size: | 1/2" x 4-3/16" |
| Min Temp (F): | 5°F |
| Max Temp (F): | 95°F 5° to 95°F |
| Max Operating Temp: | 125°F |
| Differential: | 3° to 10°F (Interstage Dif.) 3° to 10°F |
