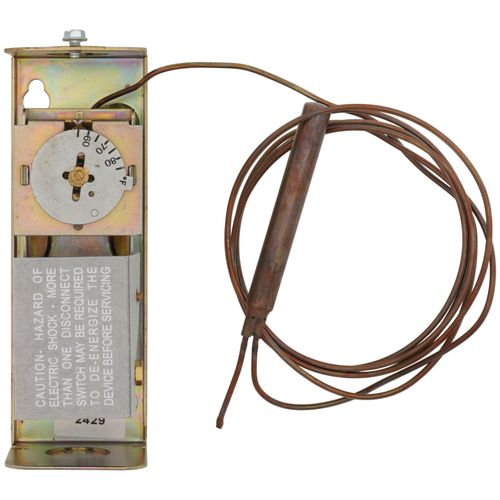

Main product image of Remote bulb Commercial Temperature Controller (55 to 85 F, 5.5 ft capillary)

Hover image to zoom

Remote bulb Commercial Temperature Controller (55 to 85 F, 5.5 ft capillary)

Name: Remote bulb Commercial Temperature Controller (55 to 85 F, 5.5 ft capillary)
Brand: Honeywell
SKU: T678C1005
Price: 271.08 USD
Availability: OutOfStock

Brand:

Honeywell

SKU:

T678C1005

Rating:

(0)

Q&A:

(0)

Remote bulb Commercial Temperature Controller (55 to 85 F, 5.5 ft capillary)

Hover image to zoom

T678C1005 has been discontinued

Discontinued February 27, 2025

This product was discontinued by the manufacturer.

MANUALS (1)

Submittal Sheet

Suggested Alternative:

Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, 1 Sensor

Brand:

Honeywell

SKU:T775B2032

(8)

Order by today, receive 8 by Tuesday

VIEW ALTERNATIVE

Product Highlights

–

120v, 240v

85°F, 55° to 85°F Max Temp

55°F Min Temp

5°F

5-5/8"

2-5/8" Depth

Description

–

Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.
Features

Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems.
Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
Controller can be mounted in any position. Ambient temperature compensation provides good temperature control.
Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
T678 models have a maximum connected load of 2000 VA.

Specifications

Application: Changeover temperature control
Type: Remote bulb
Output Type: 2 SPDT switch contacts
Output: 2 SPDT switch contacts
Voltage: 120 Vac or 240 Vac
Frequency: 50, 60 Hz
Contact Ratings (120 Vac): 8.0 AFL, 48.0 AL
Contact Ratings (240 Vac): 5.1 AFL, 30.6 ALR
Sensor Element: Copper bulb
Number of Sensor Inputs: 1
Capillary Length: 5.5 ft
Bulb Size: 3/8 in. x 3 in.
Setpoint Temperature Range: 55 to 85 F
Maximum Operating Temperature (F): 205 F

Specs

–

Application:	Remote Bulb Temperature Commercial
Output:	Relay 2 SPDT
Voltage:	120v 240v
Hertz:	50 60
Contact Ratings 120v:	8.0 AFL 48.0 ALR
Contact Ratings 240v:	5.1 AFL 30.6 ALR
Height:	5-5/8"
Width:	2"
Depth (Inches):	2-5/8"
Sensor Type:	Copper Bulb
Sensor Inputs:	1
Capillary Length:	5-1/2 ft.
Bulb Size:	3/8" x 3"
Max Temp (F):	85°F 55° to 85°F
Min Temp (F):	55°F
Max Operating Temp:	205°F
Differential:	5°F
