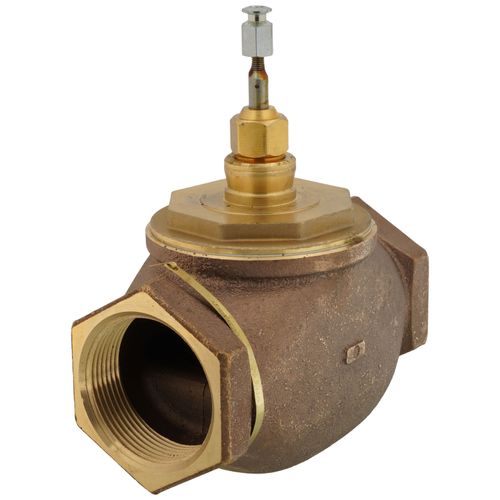

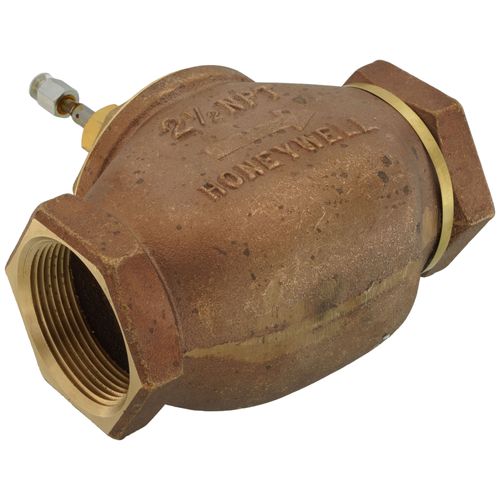

Main product image of 2-1/2" Two-way Female NPT Globe Valve, Steam (63 Cv)
Magnifying glass
Hover image to zoom

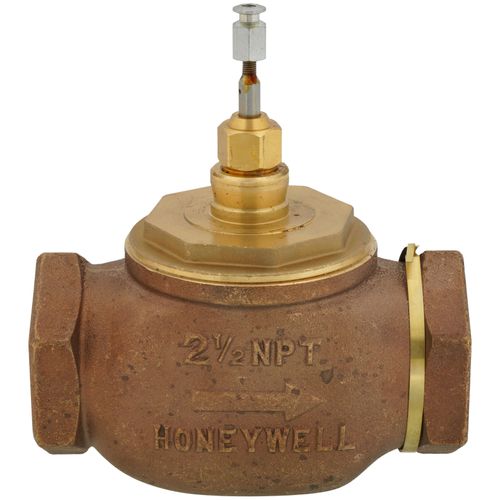

2-1/2" Two-way Female NPT Globe Valve, Steam (63 Cv)

Brand:
Honeywell
SKU:
V5011G1111
Rating:
(0)
Q&A:
(0)
2-1/2" Two-way Female NPT Globe Valve, Steam (63 Cv)
Magnifying glass
Hover image to zoom
$1,360.99 each
In Stock
In Stock
Get 2 Tomorrow, Jul 14
Order by 6PM, receive Tomorrow

MANUALS (2)

Submittal Sheet
Install Instructions
Submittal Sheet
Install Instructions
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
2-1/2"
Product Highlight: Flow Capacity (Cv)
63 Cv
Product Highlight: Connection Type
Threaded Connection
Product Highlight: Max Pressure (PSI)
@337°F (Steam) 100 MAX PSI
Product Highlight: Body Pattern
2-Way

Description

–
Used for two-position or modulating control of steam and water and glycol solutions (to 50 percent concentration) in heating or cooling systems.

Features
  • Sizes range from 2-1/2 to 3 inches.
  • Direct acting
  • High pressure steam models with stainless steel trim.
  • Spring-loaded, self-adjusting packing.
  • Stainless steel stem prevents corrosion.
  • Valve designs provide equal percentage characteristics of flow for close control of water, and linear characteristic of flow for close control of steam or chilled water.
  • Valves utilize direct mounting valve actuators or Q5020/Q5022A linkages with Direct Coupled Actuators or Pneumatic Valve Actuators to operate the valve.


Specifications
  • Valve Type: Globe Valve
  • Body Pattern: Two-way
  • Flow Characteristic: Linear
  • Controlled Medium: Chilled or hot water with up to 50% Glycol
  • Connection Type: Female NPT
  • Max. Safe Operating Pressure: 100 psi at 337 F steam, 240 psi water at 150 F
  • ANSI/ASME Rating: 150
  • Maximum Differential for Quiet Water Service (psi): 20 psid
  • Static Pressure Rating: ANSI 150
  • Fluid Temperature Rating: 40 F to 337 F
  • Materials (Body): Red Brass
  • Materials (Seat): Stainless Steel
  • Materials (stem) Stainless Steel
  • Used with: ML6984/ML7984; Q5020/DCA; Q5001/Modutrol IV Motor; MP953; ML6420,21A,25; ML7420/ML7421A/ML7425

Specs

–
Flow Capacity (Cv):

63

Size:

2-1/2"

Body Pattern:

2-Way

Valve Action:

Stem down to close

Flow type:

Linear

Connection Type:

Threaded

Max Pressure (PSI):

@337°F (Steam) 100
