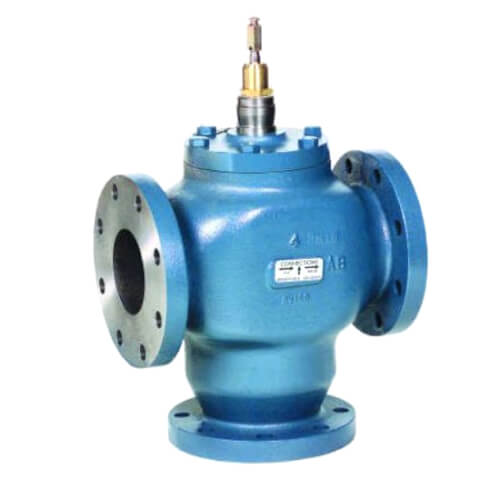

Main product image of 2-1/2" Flanged Three-Way Diverting Valve (63 Cv)
Magnifying glass
Hover image to zoom

2-1/2" Flanged Three-Way Diverting Valve (63 Cv)

Brand:
Honeywell
SKU:
V5013C1001
Rating:
(0)
Q&A:
(1)
2-1/2" Flanged Three-Way Diverting Valve (63 Cv)
Magnifying glass
Hover image to zoom
$6,351.08 each
In Stock
In Stock
Get 5 Mon, Jun 8 - Wed, Jun 10
This item replaces: VGF31LD25

Lift Gate

–
This product weighs 58.2 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
2-1/2"
Product Highlight: Connection Type
Flanged x Flanged Connection
Product Highlight: Flow Capacity (Cv)
63 Cv
Product Highlight: Max Pressure (PSI)
@240°F (Water) 150 MAX PSI
Product Highlight: Min Temp (F)
40°F Min Temp
Product Highlight: Max Temp (F)
250°F Max Temp

Description

–
The V5013B are three-way mixing valves. The V5013C are three-way diverting valves. These valves provide proportional or two-position control of hot or chilled water in heating or cooling systems. These valves are offered in sizes 2 1/2 in. through 6 in.

Features
  • Not suitable for combustible gases.
  • Valves utilize direct mounting valve actuators, Q5020/Q5022 linkages with Direct Coupled Actuators, or Pneumatic Valve Actuators to operate the valve.
  • Constant total flow through full plug travel.
  • Stainless steel stem prevents corrosion.
  • Class IV (0.01% of Cv) Leakage Rating


Specifications
  • Valve Type: Globe Valve
  • Body Pattern: Three-way
  • Controlled Medium: Chilled or hot water with up to 50% Glycol
  • Connection Type: Flanged
  • Max Safe Operating Pressure: 150 psi at 240 F water
  • Valve Action: Stem up increases AB to A flow
  • ANSI/ASME Rating:125
  • Actuation: Must be purchased separately
  • Maximum Differential for Quiet Water Service (psi): 20 psid
  • Static Pressure Rating: ANSI 150
  • Ambient Temperature Rating: 40 F to 250 F water
  • Leakage Rating: Seat: 0.05% of Cv
  • Materials (Body): Cast Iron
  • Materials (seat): Bronze
  • Materials (stem): Stainless Steel
  • Bonnet Size: 1-3/8 in.

Specs

–
Size:

2-1/2"

Connection Type:

Flanged x Flanged

Flow Capacity (Cv):

63

Max Pressure (PSI):

@240°F (Water) 150

Min Temp (F):

40°F

Valve Action:

Stem Up Increases AB to A Flow

Max Temp (F):

250°F

ANSI/ASME Rating:

125

Stem Travel:

3/4"

Valve Type:

Globe

Body Pattern:

3-Way

Flow type:

Linear

Controlled Fluid:

Chilled or hot water with up to 50% Glycol

Differential (PSI):

20

Material:

Cast Iron

Bonnet Size:

1-3/8"

Contact

Help Face
CALL US
Question? Call or text 888-757-4774
+
Help Face

Questions?

Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Open Now:
8:00am–7:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Response by Mon

QUICK SUPPORT

Order StatusShipping PolicyReturnsIs My Item in Stock?Request Item for Site

Product Q&A

1 Question
1 Question
ASK A QUESTION

Q: Kindly let me know warranty terms

Asked by Tushar 10 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- SupplyHouse Staff

This diverting valve is covered by a one year warranty.
