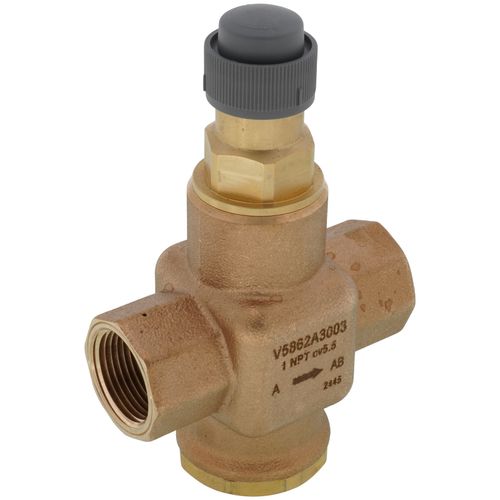

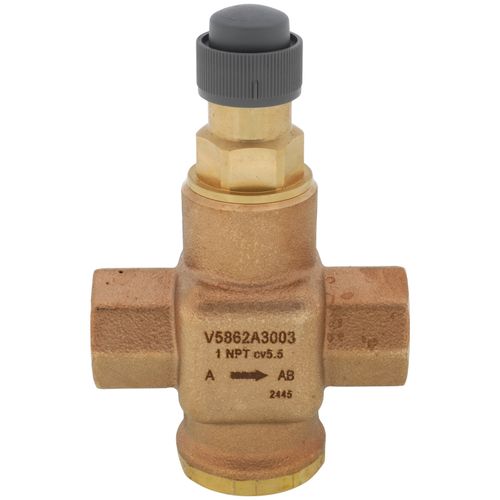

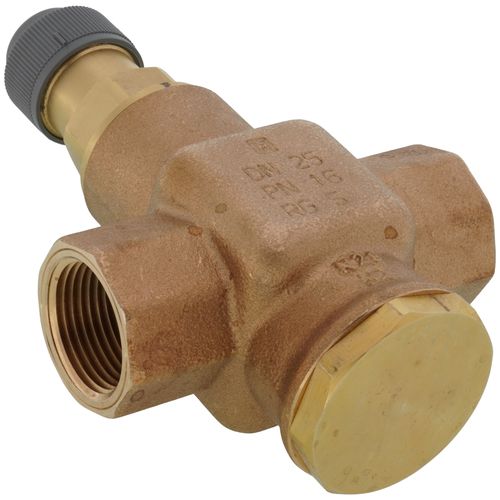

1" NPT Two-Way Cartridge Globe Valve (5.5 Cv)

Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units, small re-heaters and re-coolers in temperature controllers. Use with M6410 and M7410 Actuator. 1/2" & 3/4" size fit with the M6435 M7435, and the MP958 Actuators.

Product Features

• Long stroke allows wider range of control.
• Soft valve seat provides low leakage rate.
• Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool.
• Brass body and Stainless Steel stem.
• Threaded plastic cover/manual handle allows manual operation.
• Easily installed in areas where space is limited.

Product Specifications

• Valve Type: Cartridge Globe Valve
• Body Pattern: Two-way
• Flow Characteristic: Equal Percentage
• Controlled Medium: Chilled or hot water with up to 50% Glycol
• Connection Type: NPT (Female)
• Max. Safe Operating Pressure: 235 psi
• Maximum Differential Pressure Ratings (Close-off) (psi): 58 psi
• Valve Action: Stem down to close
• Actuation: Must be purchased separately
• Stem Travel: 1/4 in.
• Ambient Temperature: 36 to 230 F
• Leakage Rating :ANSI Class III (less than 0.02% of Cv)
• Used with: M6410A3017; M7410F3006; M6435A3000; M7435F3007
