$4,961.16 each
In Stock
MANUALS (2)
Lift Gate
–
This product weighs 150 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
6"
2-Way
Flanged x Flanged Connection
360 Cv
240 MAX PSI
Description
–
Overview

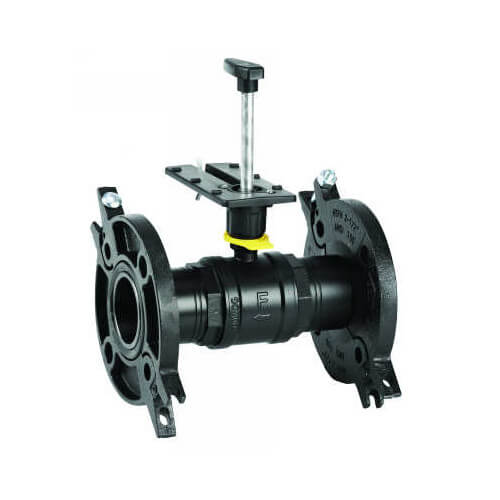

The VBF5011 Two-Way Control Ball Valve controls hot and chilled water with glycol solutions up to 50% in heating, ventilating and air conditioning (HVAC) systems to provide two-position or modulating functions. These valve can be used with Honeywell electronic actuators.
Features
The VBF5011 Two-Way Control Ball Valve controls hot and chilled water with glycol solutions up to 50% in heating, ventilating and air conditioning (HVAC) systems to provide two-position or modulating functions. These valve can be used with Honeywell electronic actuators.
Features
- Sizes from 2-1/2 in. to 6 in. with ANSI Class 125 flanged connections.
- Equal percentage or linear flow characteristics.
- Can be used with Honeywell electronic actutors.
- Field configurable for normally open or normally closed fail-safe position.
- ANSI Class IV leakage specification (0.01% of CV).
- Option of four actuator mounting positions on the valve for 4, 5 and 6 in. valves.
- Valve ball and stem 316 stainless steel for all valves except 3 in. valve.
Specs
–
| Size: | 6" |
|---|---|
| Body Pattern: | 2-Way |
| Connection Type: | Flanged x Flanged |
| Flow Capacity (Cv): | 360 |
| Fluid Temperature Range: | -22° to 250°F |
| Max Pressure (PSI): | 240 |
