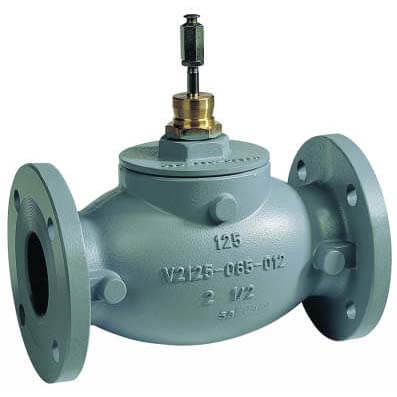

2-1/2" Pressure Balanced Flanged Globe Valve w/ Linear Flow (70 Cv)VGF21LP25 2-1/2" Pressure Balanced Flanged Globe Valve w/ Linear Flow (70 Cv)
|2||Thu, Dec 23 – Tue, Dec 28|
Free Shipping This item ships free
Need replacement parts for this unit?
- ANSI Class 125 cast iron bodies with flanged end connections
- Equal percentage and linear flow characteristics
- Face-to-face flange dimensions per ANSI/ISA S75.03 standard
- Sizes from 2-1/2 to 6 in.
- Stainless steel trim standard for long life span
- Differential pressure of 175 psi, ANSI Class IV leakage
- Steam inlet pressure up to 125 psig and 353 F maximum temperature
- Self-adjusting packing
- Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control
- Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol Motors and MN/MS Series direct coupled actuators
- Not suitable for combustible gasses
