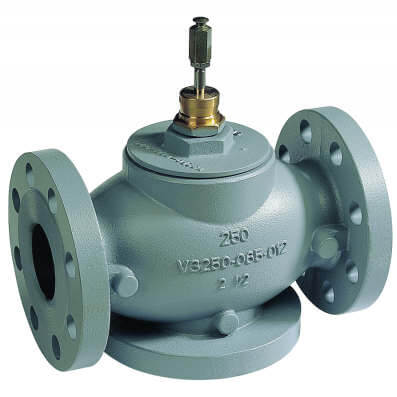

2-1/2" Flanged Globe Valve w/ Equal Percentage Flow (70 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,552.51 each
In Stock
Get 1 Thu, Jul 9
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-1/2"
70 Cv
Flanged x Flanged Connection
400 MAX PSI
2-Way
Steam: 353°F, 20°F to 250°F
Description
–
VGF Flanged Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water-glycol solutions up to 50 percent concentration in heating, ventilation and air conditioning (HVAC) systems. They can be operated by ML6984/7984, ML6420/6425, ML6421/7421 Electric Linear Actuators, MP953 Pneumatic Actuators, Modutrol Motors with Q5001 valve linkage, or MN/MS Series Direct Coupled Actuators with Q5020 or Q5022 valve linkage.
Features
Features
- ANSI Class 125 and Class 250 cast iron bodies with flanged end connections
- Equal percentage and linear flow characteristics
- Face-to-face flange dimensions per ANSI/ISA S75.03 standard
- Sizes from 2-1/2 to 6 in.
- Stainless steel trim standard for long life span
- ANSI CLass III seat leakage
- Steam inlet pressure up to 125 psig and 353 F maximum temperature
- Self-adjusting packing
- Accurate positioning with equal percentage and linear flow characteristics to ensure precise temperature control
- Universal bonnet for direct-coupled electric and pneumatic actuators for easy mounting, or linkage coupled Modutrol Motors and MN/MS Series direct coupled actuators.
- Not suitable for combustible gasses.
Specs
–
| Size: | 2-1/2" |
|---|---|
| Flow Capacity (Cv): | 70 |
| Body Pattern: | 2-Way |
| Connection Type: | Flanged x Flanged |
| Flow type: | Linear |
| Max Pressure (PSI): | 400 |
| Valve Action: | Stem down to close |
| ANSI/ASME Rating: | 250 |
| Temperature Range (F): | Steam: 353°F 20°F to 250°F |
| Stem Travel: | 3/4" |
| Differential: | 69 psi |
| Valve Type: | Globe |
| Controlled Fluid: | Chilled or hot water with up to 50% Glycol Steam |
| Material: | Cast Iron ASTM A126 Class B |
| Bonnet Size: | 1-3/8" |
