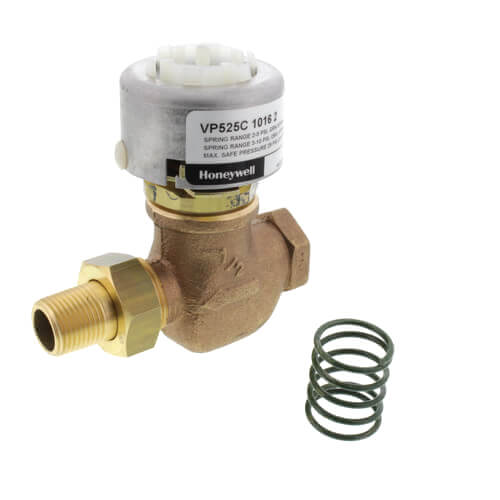

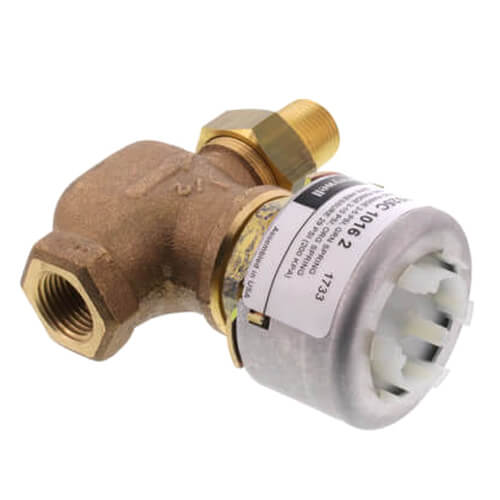

1/2" NPT Male Union Two-Way Unitary Valve (.63 Cv)
Hover image to zoom

1/2" NPT Male Union Two-Way Unitary Valve (.63 Cv)

Brand:
Honeywell
SKU:
VP525C1008
Rating:
(0)
Q&A:
(0)
1/2" NPT Male Union Two-Way Unitary Valve (.63 Cv)
Hover image to zoom
$235.46 each
In Stock
In Stock
Get 37 Thu, Mar 14
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Size icon
1/2"
Connection Type icon
FNPT x MNPT Union Connection
Body Pattern icon
Straight
Max Pressure (PSI) icon
30 (Diaphragm), 150 (Body) PSI
Flow Capacity (Cv) icon
0.63 Cv
Spring Range icon
3 psi to 10 psi

Description

Normally-open, single-seated pneumatic radiator valve with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features
  • Available in several capacities and spring ranges for various application requirements.
  • Easily replaceable actuator assembly for convenience of service.
  • Compact size for installation where space is limited.
  • Can be repacked without shutting down system.

Specs

Application:

Heating

Size:

1/2"

Spring Range:

3 psi to 10 psi

Max Pressure (PSI):

30 (Diaphragm)

150 (Body)

Flow Capacity (Cv):

0.63

Valve Action:

Proportional Normally Open

Valve Type:

Unitary

Temperature Range (F):

40°F to 240°F

Min Temp (F):

40°F

Max Temp (F):

240°F

Actuator Diaphragm: 230°F

Air Connections:

Push-On for 1/4" O.D. Plastic Tubing

Controlled Fluid:

Steam

Water

Humidity Range:

5 to 95% RH

Body Pattern:

Straight

Connection Method:

Threaded

Connection Type:

FNPT x MNPT Union
