Product Highlights
–
1/2"
FNPT x MNPT Union Connection
Straight
150 (Body), 30 (Diaphragm) MAX PSI
2 Cv
3 psi to 10 psi
Description
–

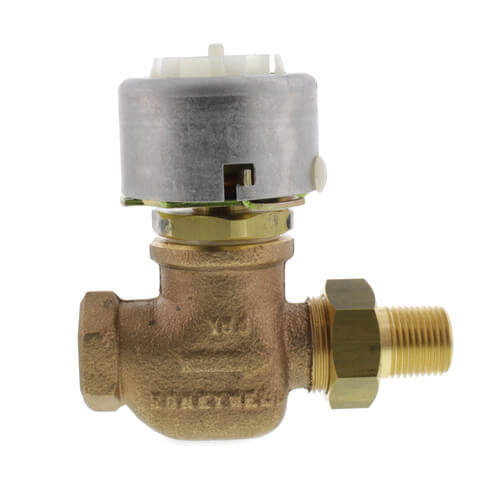

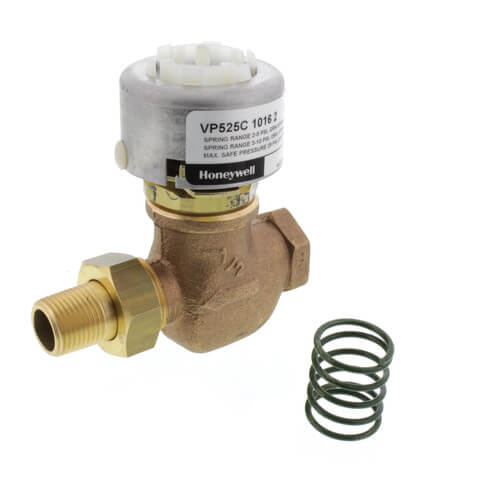

Normally-open, single-seated pneumatic radiator valve with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.
Features
Features
- Available in several capacities and spring ranges for various application requirements.
- Easily replaceable actuator assembly for convenience of service.
- Compact size for installation where space is limited.
- Can be repacked without shutting down system.
Specs
–
| Application: | Heating |
|---|---|
| Size: | 1/2" |
| Spring Range: | 3 psi to 10 psi |
| Max Pressure (PSI): | 150 (Body) 30 (Diaphragm) |
| Valve Action: | Proportional Normally Open |
| Flow Capacity (Cv): | 2 |
| Valve Type: | Unitary |
| Body Pattern: | Straight |
| Temperature Range (F): | 40°F to 240°F |
| Min Temp (F): | 40°F |
| Max Temp (F): | 240°F Actuator Diaphragm: 230°F |
| Air Connections: | Push-On for 1/4" O.D. Plastic Tubing |
| Controlled Fluid: | Steam Water |
| Humidity Range: | 5 to 95% RH |
| Connection Method: | Threaded |
| Connection Type: | FNPT x MNPT Union |
