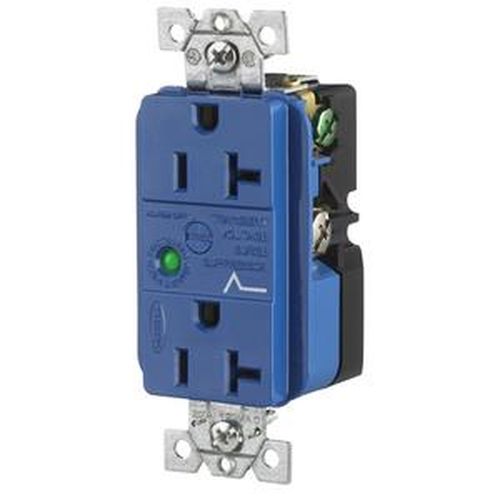

Spikeshield Tvss Duplex Receptacle W/ Light And Alarm, 20A 125V, 5-20R (Blue)

Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.

Features:

• Automatic self-grounding staple
• Distinctive surge symbol provides quick identification
• Power-on indicator light verifies that power is available
• Alert alarm sounds when surge protection is no longer functioning
• Indoor Dry Unless Protected By Additional Means
• LED and Audible Alarm indicator types
• Electrical - Protection Modes - Normal and Common Modes
• Electrical - Response Time - Approximately 5 ns
• Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs)
• Electrical - Voltage - 120V AC + 10% - 15%
• Environmental - Flammability - UL 94V-2
• Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
• Base Material - Nylon; Contact Design - Tandem Modified Bypass; Face Material - Nylon; Mounting Strap - .050" (1.3) Steel-Zinc Coated; Power Contact - .031" (.8) Brass
• CSA Certified to Specification C22.2 No. 42
• Listed to UL Standards 498
• UL Listed File E2186
