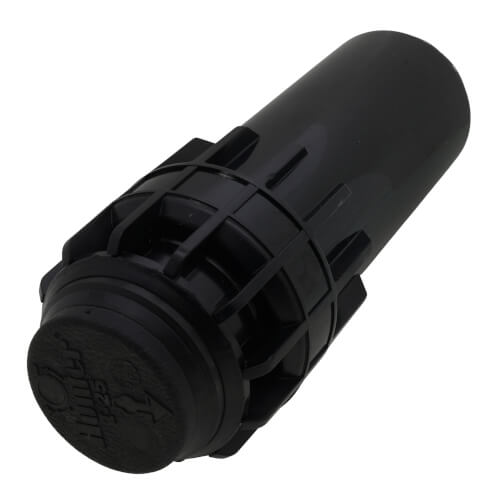

I-25 4" Pop-Up Rotor w/ Check Valve (Plastic)

The I-25 gets the job done with power, efficiency, and commercial-grade reliability. This rotor can be used in a variety of applications and environments. Its compact, highly durable design comes. With a 5-year warranty, the I-25 also has options for reclaimed water ID and high-speed. A standard check valve is built in, and a wide selection of high performance nozzles are available. Efficient, tough, and built-to-last, Hunter’s I-25 rotors work hard day in and day out so you don't have to.

Product Features

• Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°
• Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
• Part- and full-circle in one model for installation flexibility and reduced inventory
• Color-coded nozzles make identification easy
• QuickCheck arc mechanism for fast arc adjustment
• Drain check valve prevents low-head drainage (up to 10' of elevation)
• Standard Nozzles Included: #07 (Orange) , #10 (Light Green), #15 (Gray), #20 (Dark Brown), #25 (Dark Blue)

Specifications

• Pop-up Height: 4"
• Overall Height: 7-7/8"
• Exposed Diameter: 1-7/8"
• Inlet Size: 1" NPT
• Radius: 45' to 70'
• Flow Rate: 6.6 to 29.5 GPM
• Recommended pressure range: 40 to 100 PSI
• Operating pressure range: 40 to 100 PSI
• Precipitation rates: 0.4 in/hr approximately
• Nozzle trajectory: standard = 25°
• Warranty period: 5 years
