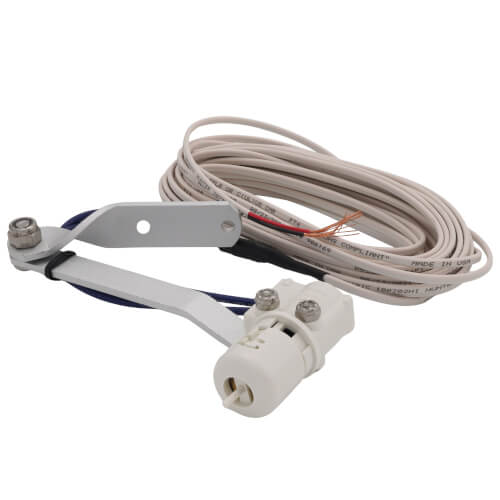

MINI-CLIK Wired Rain Sensor

Hunter's Mini Clik rain sensor provides the simplest, most effective way to prevent sprinklers from running during or after any level of rainfall. It easily installs on any automatic irrigation system. The Mini-Clik stops scheduled irrigation when it detects a pre-set level of rain has fallen. This automatic process ensures landscapes aren’t watered during a storm. Once the storm passes, the Mini-Clik allows the controller to resume normal irrigation. Mini-Clik is compatible with all Hunter controllers, and once plugged in, it ensures that a system doesn’t water during the rain.

Features:

• Shuts off irrigation automatically when the sensor detects rainfall from 1/8" to 3/4"
• Debris tolerant for reliable operation and no unnecessary shutdowns
• Mountable to gutters using (P/N SGM)
• Stainless steel guard with Mini-Clik sensor for commercial applications (P/N SG-MC)
• Rugged polycarbonate housing and metal extension arm minimizes wear and prevents rusting
• Compatible with most normally open or normally closed irrigation controllers for ease of use in any setting

Specifications:

• Quick Response Technology (when enabled):
  • Time to turn off irrigation system: approximately 2 to 5 minutes
  • Time to reset Quick Response: approximately 4 hours under dry, sunny conditions
  • Time to reset when fully wet: approximately 3 days under dry, sunny conditions
• All models switch rating (24 VAC): 3 A
• 25' of 20 AWG sheathed, two-conductor UL-approved wire
• Range is 800' line-of-sight from sensor to receiver
• Approvals: UL, cUL, FCC, CE, RCM
• Warranty period: 5 years
