Description

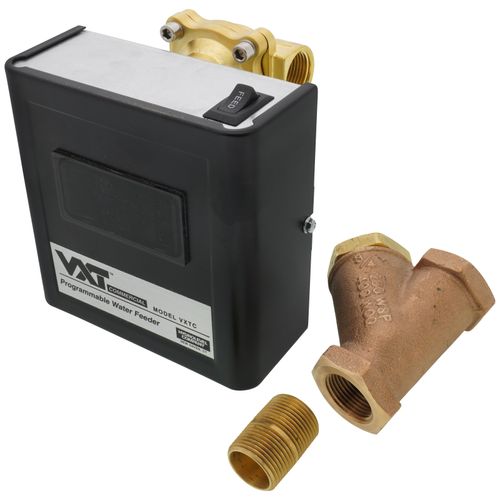

Designed to operate with all major low water cut-offs and pump controllers. Upon a low water signal from the boiler control, the VXTC delays (from 0 to 10 minutes) to allow condensate to return to the system. If make-up water is required following the delay period, the VXTC initiates a feed cycle. The VXTC can be set to feed to the level of the boiler control or to varying levels above. The heavy-duty water meter tracks all water fed into the system. The VXTC includes water feeder, strainer, flow restrictor.

Product Features
  • Max. Feed Water Temperature: 100° F
  • Flow Rate (@ 40 PSI): 10 GPM
  • Electrical: 120 VAC, 60 HZ
  • Programmable Feed Delay Settings (0 to 10 Min)
  • Programmable Feed Amount Settings (LWCO to LWCO+120 Sec)
  • LED Indicating Lights
  • Lock-Out Flood Protection
Read more
Manuals (2)
Specs
Application:
Steam Boilers
Type:
Electronic
Max Pressure (PSI):
150
Flow Rate (GPM):
1
Max Inlet Water Temp (F):
150°F
Voltage:
120v
Connection Type:
Sweat
Reset Type:
Automatic
×
