Field Adjustable Percentage Cycle Time Switch, 20A, SPST (120-240V)

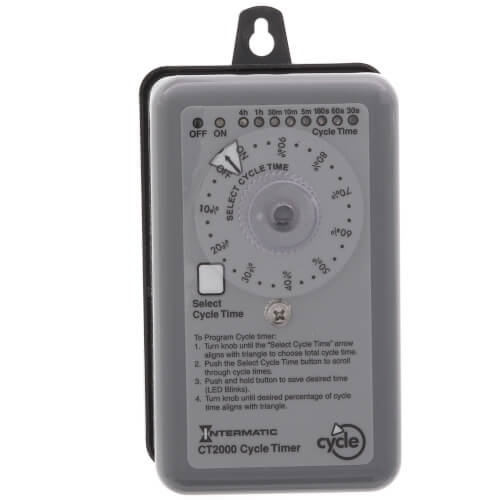

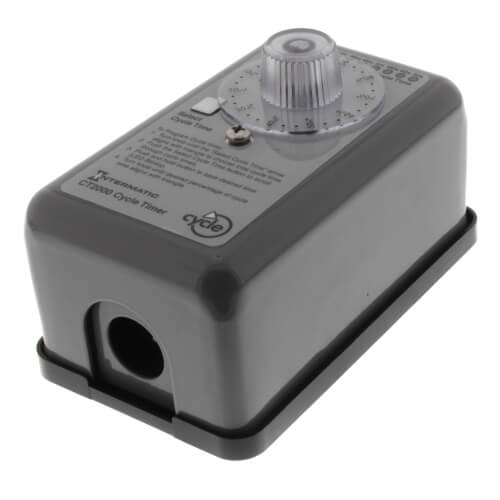

The CT2000 Percentage Cycle Timer is a field adjustable timer, offering true flexibility for repetitive cycle times via upfront control button. This timer provides repetitive cycling for fans, misters, foggers, feeders, process equipment, oil pumps, irrigation, nurseries, and other short cycle applications. The timer enclosure includes two slotted mounting holes on 5" centers and a ½" knockout for conduit connection.

Model Overview:

• Provides 8 field selectable cycle durations: 30 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour, and 4 hours
• Provides 30 separate detent positions for precise selection of percentage On time
• User settings stored in non-volatile memory
• Control buttons on front of timer
• No DIP switches to program cycle time
• Manual ON/OFF control allows for temporary or permanent override
• Designed to function in dusty, ammonia, and wash-down environments
• Able to withstand surge of up to 6,000 VAC
