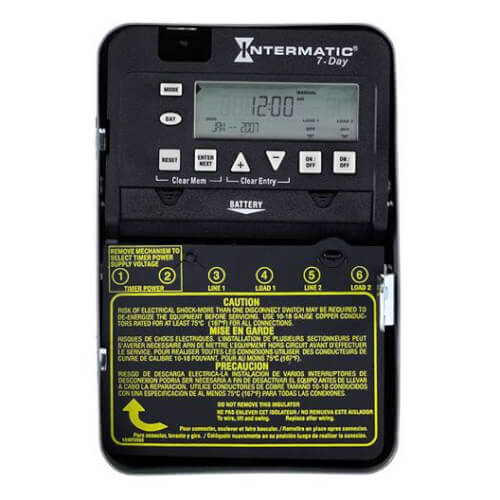

ET1700 Series Electronic 7-Day Time Switch, 2xSPST/DPST

ET1700 Series Electronic 7-Day Time Switch, 2x SPST/DPST

Product Description The Intermatic ET1700 Series Electronic 7-Day Time Switch automatically switches loads to a preset weekly schedule with to-theminute accuracy. The independent 7-day programming provides complete flexibility for applications where load switching differs each day of the week.Use the ET1700 series as an ON/OFF timer in applications requiring 7-day load control such as lighting, air conditioning systems, pumps, etc. Each load output of the Time Switch can support up to 14 timed ON and 14 timed OFF events per day. The program can be overridden by pushing the ON/OFF load override button(s).

The ET1700 Series Time Switch is designed to directly switch tungsten or ballast loads up to its rating, and inductive or resistive loads up to 30A at 120, 208, 240, or 277 VAC

Product Features

• Selector switch to determine input voltage between 120-277 VAC, 50/60 Hz
• Up to 28 events total
• To-the-minute accuracy
• Temporary override or permanent manual override
• Automatic Daylight Saving Time adjustment
• Astronomic models enable dusk-to-dawn scheduling
