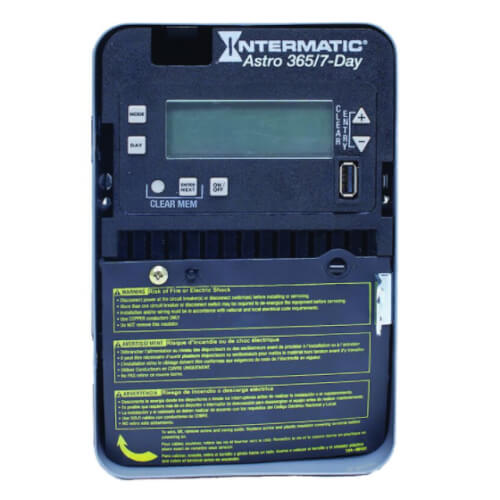

ET2000 Series One-Circuit Astronomic 7-Day Electronic Time Switch, SPDT (120-277 VAC)

The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Applications

• Machinery & Pump Controls
• Outdoor Lighting Control
• Timing/Scheduling ON/OFF

Features

• 100-hour supercapacitor eliminates the need for batteries
• Up to 96 set points or events
• Up to 50 holiday blocks with schedule capabilities
• Automatic input voltage selection from 120 to 277 VAC, 60 Hz
• Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
• Configurable outputs allow the control of various voltages and applications
• Relays incorporate zero-crossing technology to extend the life of the control
• Non-volatile EEPROM memory protects programming indefinitely
• LED compatible
• USB port makes transferring and saving of schedules easy

Specifications

• Enclosure Type: Indoor type 1 metal
• Number Of Circuits: 1
• Switch Type: SPDT
• Maximum Power Consumption: 3 W
• Wiring Option: Terminals
• Wire Size Min: #14 AWG
• Wire Size Max: #8 AWG
• Input Voltage Range(s): 120-277 VAC, 60 Hz
• Operating Temperature: -40° to 104°F
• Warranty Period: 2-Year limited
