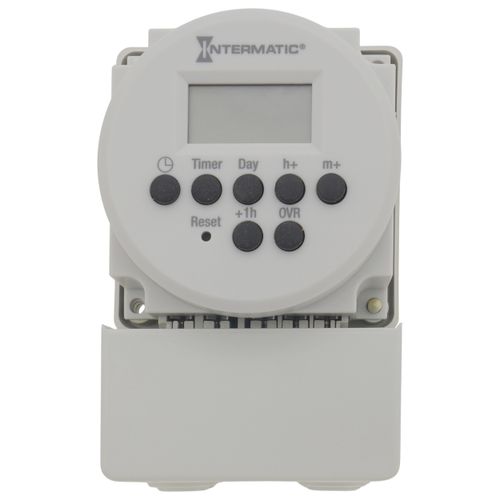

One Circuit Electronic Time Switch, 15A, SPDT Surface Mounting (12/24 VDC, 24 VAC)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$271.49 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: FM1D14A-24
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
15 Amps
Description
–

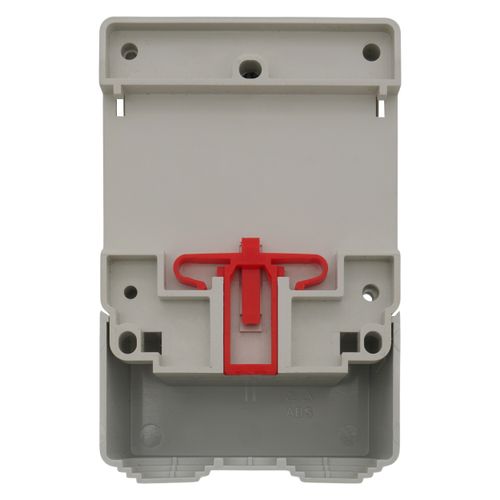

The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Model Overview:
Model Overview:
- 24-Hour or 7-Day applications
- 14 setpoint programs
- Easy-to-follow menu driven programming
- Self-recharging battery with backup protection up to 2500-hours
- LCD display
Specs
–
| Voltage: | 24V |
|---|---|
| Switch: | SPDT |
| Amperage: | 15 |
| Hertz: | 50/60 |
