Auto-Voltage Electromechanical Time Switch, 40A, DPDT (120-277V)

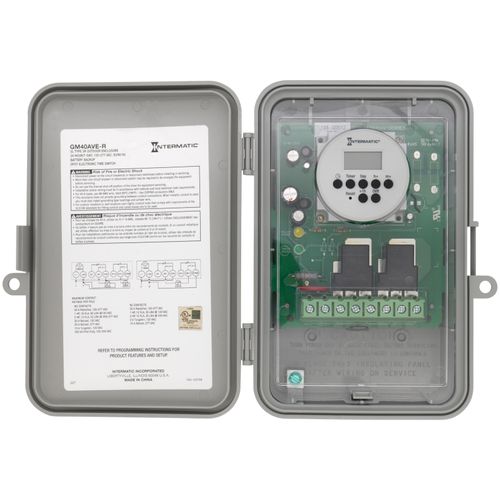

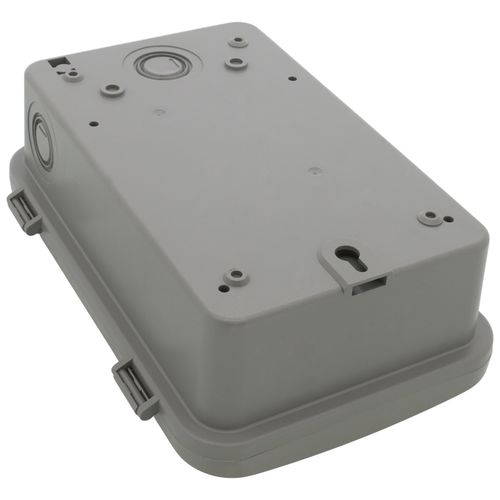

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).

Features:

• Heavy-duty 40 A contact rating
• Automatically adjusts voltages between 120-277 VAC
• 24-Hour/7-day flexible scheduling
• Power and status LED indicators
• DPDT switching configuration (2 NO and 2 NC Contacts)
• 14 Setpoint programs
• Manual override with load status indication
• Self-recharging battery with back up protection up to 2500 hours
• Type 3R outdoor enclosure with lockable hasp
• To-the-minute accuracy

Applications:

• Lighting Control
• Access Control
• Commercial Refrigeration
• General Electrical Circuits
• Pump Control
• Motor Control
• Fan Control
