Description

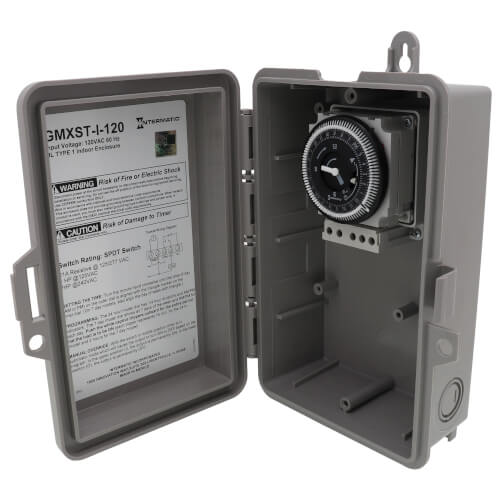

GMX Series 24-Hour Light Duty General Time Switch, 21A, SPDT (120V)

The GMX Series Time Switches are universal, electromechanical time controls. They are a low cost alternative for applications that do not require more than 21 Amp or 2 HP @ 240 VAC. The unit is mounted in a UL Type 1 or UL Type 3R outdoor enclosure. The GMX is a light-duty commercial time switch ideal for 24, 120, 208 or 240 VAC single phase applications, such as lighting control, heating, air-conditioning, pumps, motors, fans, agricultural facilities and general electrical circuits.

Features:
  • 21 Amp SPDT Switch

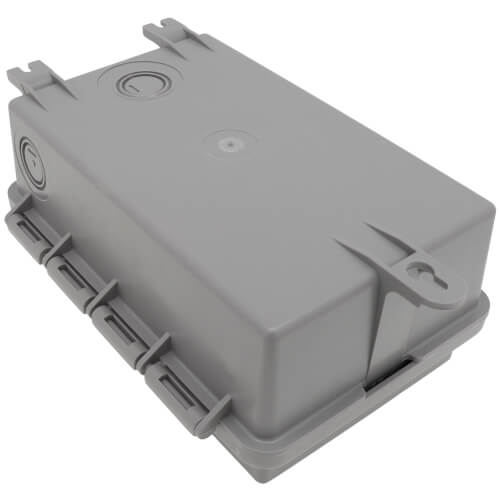

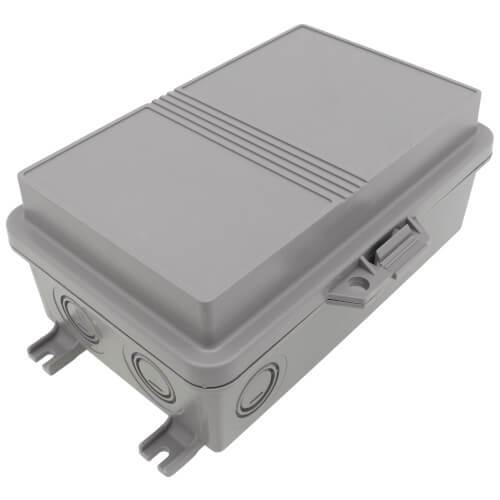

  • UL Type 1 indoor or Type 3R outdoor enclosure
  • Manual 3-way override
  • Captive trippers with 15-minutes intervals on 24-Hour models and 2-hour intervals on 7-Day models
  • True clock face, easy to set
  • Finger-safe terminals
  • Enclosure provides space for field added contactor or other accessories
  • Synchronous drive or quartz drive with battery backup
  • Hide Description
    Manuals (2)
    Specs
    Voltage:

    120v

    Switch:

    SPDT

    Amperage:

    21

    Hertz:

    50/60

    Programmability:

    24 Hour

    ×

    Product Review

    Product Q&A

    Add-on Item

    This item is cost-prohibitive to ship on its own but is available to ship with orders over $200.

    Why don't we show the price of this item?

    We try to always offer you the lowest prices possible, but some manufacturers require that we only show these low prices once you take further action.

    To see the price, simply add the item to your cart or sign in.
