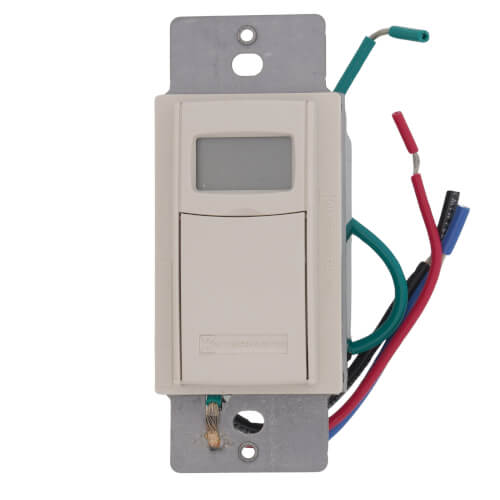

Heavy Duty 7-Day Digital Programmable Timer w/ Astro Feature (Light Almond)

Heavy-Duty 7-Day Programmable Timer, 15A

Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required.

Features:

• Versatile 7-day programmable schedules with up to 40 ON/OFF events
• Astronomic clock feature determines dawn and dusk times
• Automatic Daylight Saving Time (DST) adjustment
• Random mode varies ON/OFF schedule to provide a "lived-in" appearance
• Single or 3-way switch compatible installation
• Incandescent/fluorescent/CFL/LED compatible
• Isolated switch allows timer to be used with any load type, including AC and DC loads
• Replaceable CR2 lithium battery provides up to three years of operation
• No neutral wire connection enables easy retrofitting and quicker installation

Applications:

• Entryway Lighting
• Deck Light Controls
• Landscape Light Controls
• Attic Fans
• Pumps
• Hallway Lighting
• Small Commercial Signage and Store Lighting

Specifications:

• Operation Features: Astronomic, Daylight Saving Time
• Application Compatibility: CFL, Fluorescent, LED, Incandescent
• Wall Plate Configurations: Single Gang
• Wiring Configurations: 3-Way, Single
• Motor: 1 HP, 120 VAC, 50/60 Hz, 2 HP, 240 VAC, 50/60 Hz
• Battery Type: CR2 Lithium
• DC Loads: 4 A, 12 VDC, 2 A, 28 VDC
• Resistive: 15 A, 120-277 VAC, 50/60 Hz
