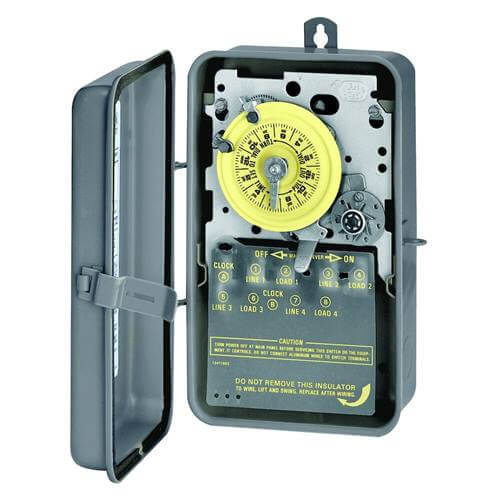

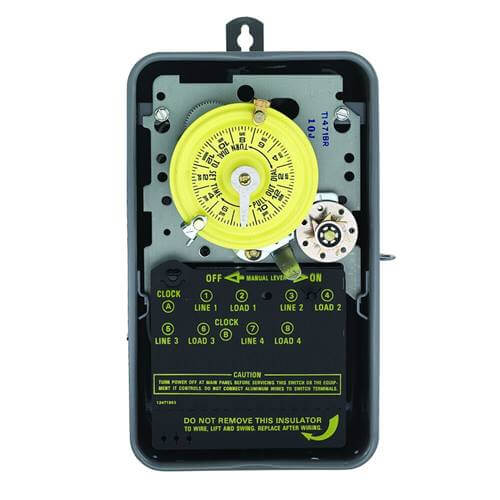

The Skipper - 24-Hour Mechanical Time Switch, 40A, 4-SPST (120V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$377.83 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
40 Amps
2 HP
24 Hour
Description
–
24-Hour Mechanical Time Switch with Skip-a-Day
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features:
Applications:
Specifications:
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features:
- Controls loads up to 40 A per pole
- Direct 24-hour control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Applications:
- Indoor/Outdoor Lighting
- Pool Heaters
- Pumps
- Blowers
- Conveyors
- Electric Fences
- Fans
- Filters
- Signs
- Various Other Electrical Loads
- Commercial
- Industrial
- Residential
Specifications:
- Resistive: 40 A, 120-480 VAC, 60 Hz
- Electronic Ballast: 16 A, 277 VAC, 60 Hz
- Operation Mode: 24-Hours
- Motor (Three-Phase): 10 HP, 28 FLA, 240 VAC, 60 Hz, 7 1/2 HP, 28 FLA, 208 VAC, 60 Hz
- Maximum Power Consumption (W): 3 W
- Operating Temperature Max (F): 130°
- Operating Temperature Min (F): -40°
- Motor (Single-Phase): 2 HP, 24 FLA, 120 VAC, 60 Hz, 5 HP, 28 FLA, 240 VAC, 60 Hz
Specs
–
| Voltage: | 120v |
|---|---|
| Amperage: | 40 |
| Horse Power: | 2 |
| Programmability: | 24 Hour |
| Hertz: | 60 |
| Switch: | 4PST |
| Max Operating Temp: | 130°F |
