60Hz Flush Mount AC Hour Meter, Quick Connect Combination (24V)

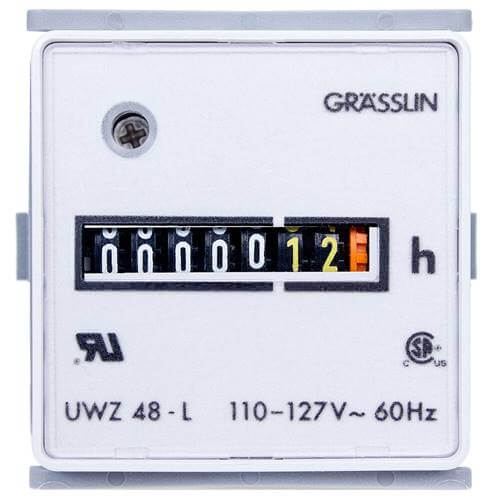

UWZ Series 60Hz AC Hour Meter
The UWZ Series Hour Meters are designed to meet IP20 environmental ratings for indoor applications. All models have a light gray color on black background. Tenths and hundreths numerals are yellow. An orange dial adjacent to the hundreths digit provides running indication.

Flush mounted with bracket, the UWZ48E unit fits into a 1.79" x 1.79" (45.5 X 45.5 mm) cutout. The thickness of the panel for flush mounting can be up to .35" (9 mm). The unit is secured in position by a plastic slip-on retaining bracket. The unit also fits square or round openings for 72 mm with optional 72 mm bezel.

Specifications:

• Bezel: 1.89" x 1.89" (48 mm x 48 mm)
• Capacity: 99,999.99 hours
• Mounting: Flush
• Digits: 0.16" high numerals
• Voltage: 24v, 6Hz
• Power Consumption: 1VA
• Termination: Combination 1/4" spade and screw clamp
• Operating Temperature: -40°F to 160°F (-40°C to 72°C)
• Weight: 2.1 oz
