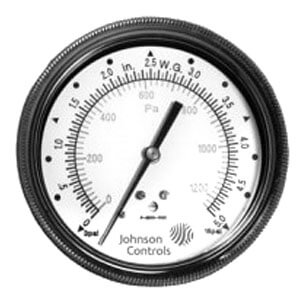

Pneumatic Pressure Indicator (0 to 1.0" WG)

Name: Pneumatic Pressure Indicator (0 to 1.0" WG)
Brand: Johnson Controls
SKU: P-5500-44
Price: 311.57 USD
Availability: OutOfStock

Brand:

Johnson Controls

SKU:

P-5500-44

Rating:

(0)

Q&A:

(0)

Pneumatic Pressure Indicator (0 to 1.0" WG)

Hover image to zoom

P-5500-44 has been discontinued

Discontinued January 17, 2024

This product was discontinued by the manufacturer.

MANUALS (1)

Product Overview

Product Highlights

–

1.0" WG

1/8" NPT Connection

Flush, Surface, Back

Description

–

The P-5500 Pneumatic Pressure Indicator is an analog type gauge providing a continuous visual indication of pressure measurement of one transmitter in a 3 to 15 psig (21 to 105 kPa) pneumatic transmission system.

Features:

available in 3-1/2 in. (89 mm) size
pressure readout in in. WG, psig and equivalent metric scale (kPa and Pa) printed in blue
removable clear plastic lens cover for easy cleaning.
mounts flush with provided U-clamps, or on surface.
U-clamps are notched for breakoff to accommodate various panel thicknesses

Specs

–

Application:	Heating
Max Pressure:	1.0" WG
Dial Size:	3-1/2"
Measures:	Fahrenheit
Connection Type:	1/8" NPT
Accuracy:	+/- 1/2%
Mount:	Flush Surface Back
Ambient Temperature:	-20°F to +150°F
Type:	Dry
