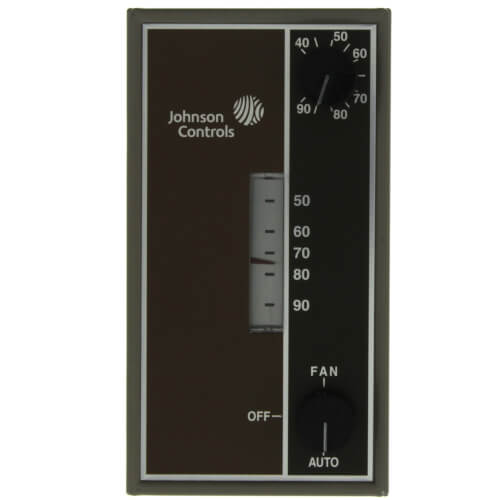

Heavy Duty Heating Line Voltage Thermostat, OFF-AUTO-FAN Switch (40 to 90F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
T22CBC-1C has been discontinued
Discontinued June 20, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: T22CBC-1
Product Highlights
–
Non-Programmable
120v, 240v, 208V
1 Heat
40° to 90°F Max Temp
0.7°F
Base and Cover: Baked "Tawny Silver" Enamel, Faceplate: Dark Brown and Light Brown w/ Aluminum Lettering
Description
–
The T22 line voltage thermostats control heating, cooling, or year
round air conditioning units in commercial, industrial or residential installations. Typical uses are for unit heaters, fan coils, blast coils, refrigeration storage rooms, electric heat, duct furnaces, Greenhouses, etc. Models are available with SPST or SPDT contact action for standard duty (nominal 1/4 hp) or heavy duty (nominal 1 hp) applications.
Specs
–
| Application: | Electric Heat (Line Voltage) Heat Only |
|---|---|
| Stages: | 1 Heat |
| Switch: | SPST OFF-AUTO-FAN |
| Voltage: | 120v 240v 208V |
| Max Temp (F): | 40° to 90°F |
| Differential: | 0.7°F |
| Finish: | Base and Cover: Baked "Tawny Silver" Enamel Faceplate: Dark Brown and Light Brown w/ Aluminum Lettering |
| Wiring: | Screw Connections |
| Programmability: | Non-Programmable |
| User Interface: | Mechanical |
| Options: | Fan Control |
| Changeover: | Auto/Manual Selectable |
