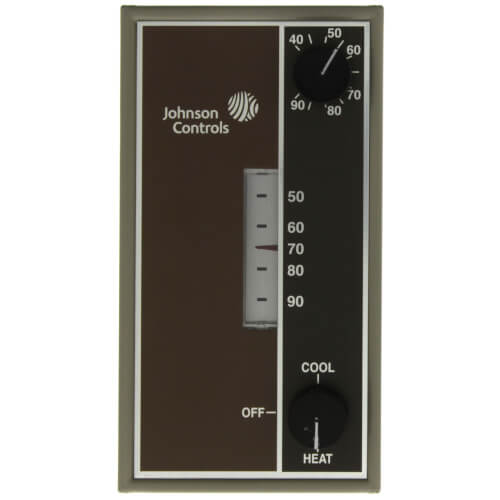

Heating and Cooling Line Voltage Thermostat, HEAT-OFF-COOL Switch (40 to 90F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
T22SEB-1C has been discontinued
Discontinued June 20, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: T22SEB-1
Product Highlights
–
Non-Programmable
240v, 208V, 120v
1 Heat/1 Cool
Vertical
0.7°F
Faceplate: Dark Brown and Light Brown w/ Aluminum Lettering, Base and Cover: Baked "Tawny Silver" Enamel
Description
–
The T22 line voltage thermostats control heating, cooling, or year
round air conditioning units in commercial, industrial or residential installations. Typical uses are for unit heaters, fan coils, blast coils, refrigeration storage rooms, electric heat, duct furnaces, Greenhouses, etc. Models are available with SPST or SPDT contact action for standard duty (nominal 1/4 hp) or heavy duty (nominal 1 hp) applications.
Features
Features
- Sensitive liquid charge element and efficient leverage provides close differential without anticipators.
- Thermostats have concealed, adjustable, high temperature stop. (See Fig. 2.)
- Choice of built-in selector switches -- and wide selection of circuitry.
- Requires no add-on subbases.
- Snap-acting contacts in a sealed dust protected enclosure.
- Close differential without need for anticipator.
- Bimetal thermometer is standard. Easily calibrated.
Specs
–
| Application: | Electric Heat (Line Voltage) |
|---|---|
| Stages: | 1 Heat/1 Cool |
| Programmability: | Non-Programmable |
| Switch: | SPDT HEAT-OFF-COOL |
| Changeover: | Manual |
| User Interface: | Mechanical |
| Differential: | 0.7°F |
| Finish: | Faceplate: Dark Brown and Light Brown w/ Aluminum Lettering Base and Cover: Baked "Tawny Silver" Enamel |
| Mount: | Vertical |
| Wiring: | Screw Connections |
| Max Temp (F): | 40° to 90°F |
| Voltage: | 240v 208V 120v |
