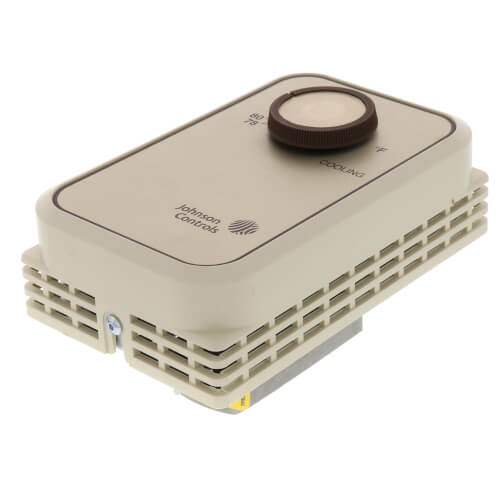

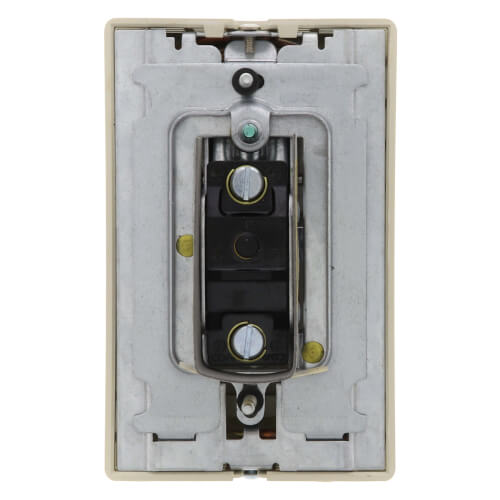

Main product image of 78 to 90F Cooling Line Voltage Thermostat, SPST

Hover image to zoom

78 to 90F Cooling Line Voltage Thermostat, SPST

Name: 78 to 90F Cooling Line Voltage Thermostat, SPST
Brand: Johnson Controls
SKU: T26J-9C
Price: 189.20 USD
Availability: OutOfStock

Brand:

Johnson Controls

SKU:

T26J-9C

Rating:

(0)

Q&A:

(0)

78 to 90F Cooling Line Voltage Thermostat, SPST

Hover image to zoom

T26J-9C has been discontinued

Discontinued June 20, 2024

This product was discontinued by the manufacturer.

MANUALS (2)

This item replaces: T26J-9

Product Highlights

–

Non-Programmable

24V, 120v, 240v, 277v

Vertical

Description

–

Features

Line Voltage Components Switch Box mounted which provides isolation of electrical circuit from sensing element
Models with limited ranges available provides energy conservation
Adjustable High/Low Range Stops
Enclosed Pennswitch provides dust protection for contacts
Mounting Plate allows easy mounting and wiring without removing the cover

Specifications

Differential: Approximately 0.7 F
Ambient Operating Temperature: 0 to 105?F
Sensing Element: Liquid Filled
Thermometer: Bi-metal Type
Switch: Snap-acting Contacts in a Dust-protected Enclosure
Mounting: Vertical or Horizontal 2 x 4 in. Wall Box
Wiring Terminals: Large 8-32 x 1/4 in. Binder Head Screws
Dimensions (H x W x D): 4.71 x 2.96 x 2.87 in.

Specs

–

Application:	Cool Only
Programmability:	Non-Programmable
Switch:	SPST
Operating Temp Range:	78 to 90 F
User Interface:	Mechanical
Mount:	Vertical
Voltage:	24V 120v 240v 277v
