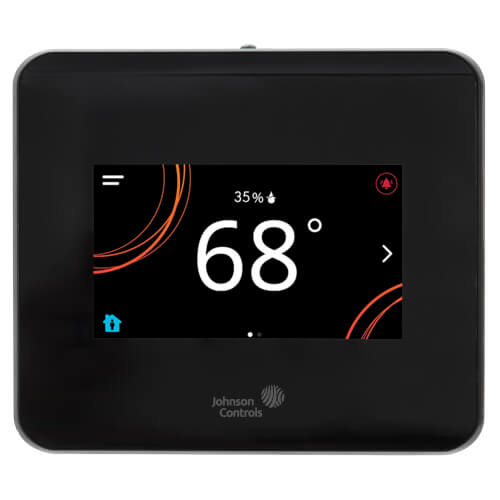

TEC3000 Stand-alone Thermostat Controller w/ Dehumidification (Black)

The TEC3000 Series Thermostat Controllers are stand-alone and field-selectable BACnet® Master-Slave/Token-Passing (MS/TP) or N2 networked devices that provide on/off, floating, and proportional control of:

• local hydronic reheat valves
• pressure-dependent VAV equipment with or without local reheat
• two- or four-pipe fan coils
• cabinet unit heaters
• other zoning equipment using an on/off, floating, or 0 to 10 VDC proportional control input

Features:

• Touchscreen display with adjustable backlight
• Customizable User Interface with password protection
• Local Weekly Schedules available via BACnet
• Stand Alone or BACnet (MSTP) or N2 Bus
• Mobile Access Portal (MAP) gateway compatibility
• Auto-Tuning (PRAC+) and Optimal Start
• Measurement Trends of the last 24 hours
• Commissioning menu and Fault Diagnostic warnings
• USB Port for Back-Up, Restore and Cloning
• Multiple Fan Configurations On/Off or VSD (0…10V)
• Optional on board Occupancy Sensor (PIR)
• Optional integral Humidity Sensor with Dehumidification

Specifications:

• Control: FCU Stand Alone
• Mode: On/Off
• Sensor Type: Temperature + Humidity
• Color: Black
• Power Requirements: 19 - 30 VAC, 4 VA, 50/60 Hz
