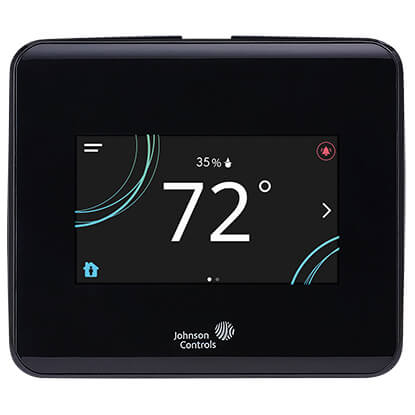

TEC3000 BACnet or N2 Networked Thermostat Controller w/ Dehumidification (Black)

Field-selectable BACnet MS/TP or N2 Networked Thermostat Controller, FCU/VAV (0-10VDC Proportional), Occupancy & Dehumidification, Colored display, White, JCI Logo

The TEC3000 Series Thermostat Controllers are stand-alone, and field-selectable BACnet® Master-Slave/Token-Passing (MS/TP) or N2 networked devices that provide on/off, floating, and proportional control of the following:

• local hydronic reheat valves
• pressure-dependent VAV equipment with or without local reheat
• two- or four-pipe fan coils
• cabinet unit heaters
• other zoning equipment using an on/off, floating, or 0 to 10 VDC proportional control input Models also provide single- or two-stage control of unitary rooftop units (RTUs) with or without economizers and heat pumps.


  Features:
  • Touchscreen display with adjustable backlight
  • Customizable User Interface with password protection
  • Local Weekly Schedules available via BACnet
  • Stand Alone or BACnet (MSTP) or N2 Bus
  • Mobile Access Portal (MAP) gateway compatibility
  • Auto-Tuning (PRAC+) and Optimal Start
  • Measurement Trends of the last 24 hours
  • Commissioning menu and Fault Diagnostic warnings
  • USB Port for Back-Up, Restore and Cloning
  • Multiple Fan Configurations On/Off or VSD (0…10V)


  Specifications:
  • Control Output: 0 to 10 VDC proportional fan coil and zoning
  • Dehumidification: Yes
  • Johnson Controls Logo
  • Color: Black
