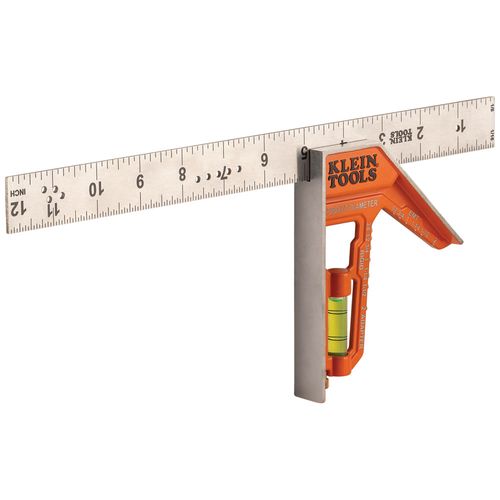

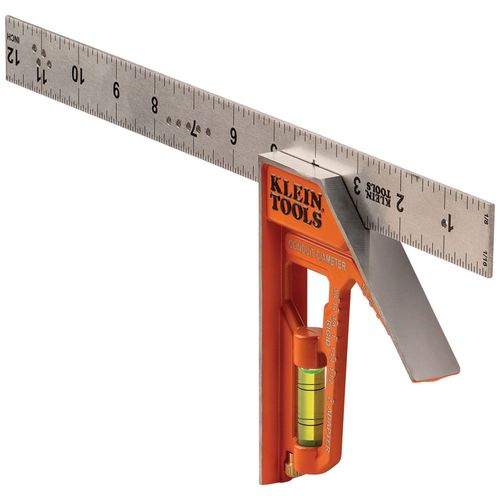

12" Electrician's Combination Square

Product Features

• Powerful Rare-Earth magnets allow for no-hassle quick ruler adjustments and firmly hold the ruler to the body

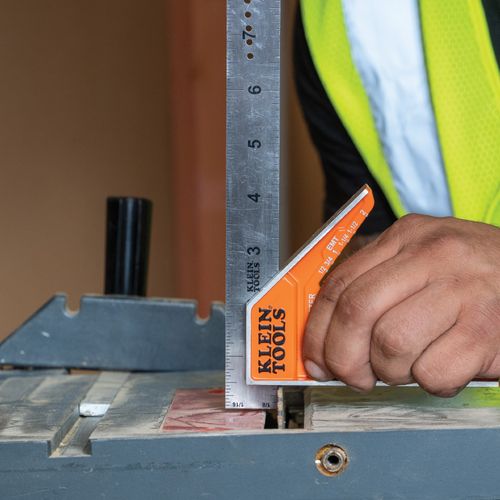

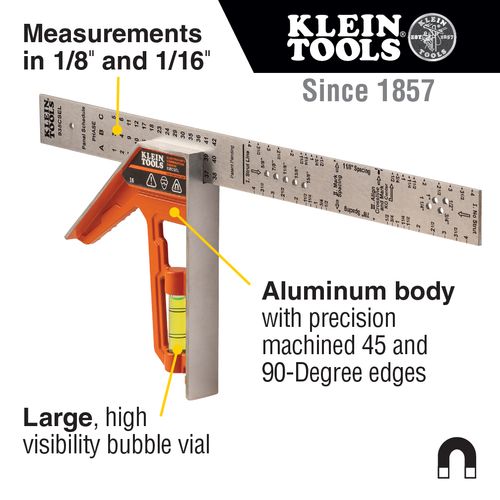

• Durable and lightweight aluminum body with precision machined 45 and 90-Degree edges can set a miter saw or table saw to the perfect angle
• Effortlessly find center knockouts for EMT using the integrated conduit layout template

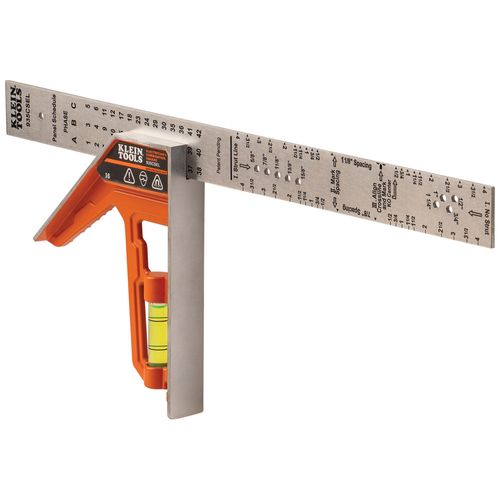

• Double-sided ruler provides measurements in 1/8-Inch and 1/16-Inch increments on one side; electrical panel schedule and conduit layout template on the other side for versatility
• Deeply etched markings in the 12-Inch, rustproof, stainless steel ruler prevent the print from rubbing off
• Large, high visibility bubble vial window with reinforced housing is easy to read

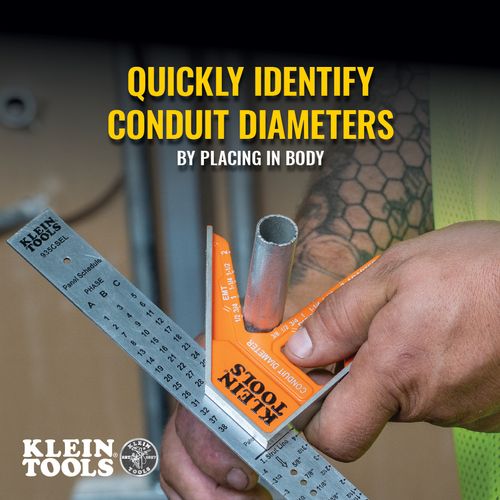

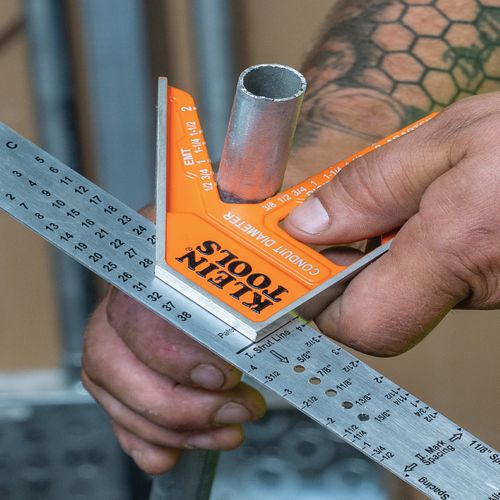

• Place EMT and rigid conduit or conduit adapters in the body to quickly identify the conduit diameters to easily plan the electrical box layout
• Integrated Stainless Steel scriber marks with pinpoint accuracy

Product Specifications

• Type: Combination
• Application: Magnetic Combination Square and Conduit Layout Template
• Special Features: Rare-Earth Magnets; Detachable Body; Precision Machined 45° and 90° Edges
• Material: Stainless Steel, Aluminum, Neodymium Magnets
• Reading: 1/8''; 1/16''
• Measurement Standard: SAE
• Graduations: 1/8''; 1/16''
• Measurement Range: 12'' (30.5 cm)
• Coating: Powder Coating
• Overall Length: 5.16'' (13.1 cm)
• Overall Height: 12'' (30.5 cm)
• Overall Width: 0.75'' (2 cm)
• Weight: 10.6 oz (299 g)
• UPC: 092644930072
