Open Jaw Fork Meter, AC Auto-Ranging 200 Amp
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$79.99 each
Backorder
Get it Wed, Aug 5 - Wed, Sep 2
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
8-38/100" Length
Description
–

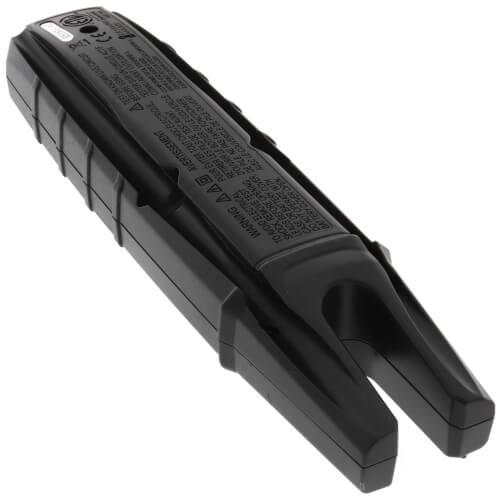

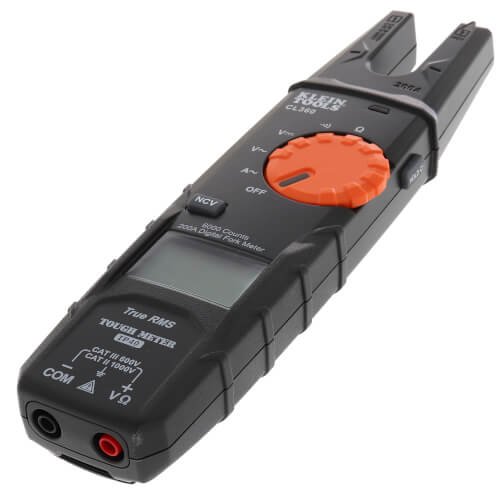

Open Jaw Fork Meter, AC Auto-Ranging 200 Amp
The CL360 is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester.
Specifications:
The CL360 is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester.
Specifications:
- Type: Open Jaw Fork Current Meter
- Application: Measures AC Current, AC/DC Voltage, Continuity, Resistance
- Special Features: Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
- Material: Plastic/Electronics
- Batteries: 2 x AAA
- Auto-Power Off: Y
- Jaw Size: 0.58'' (14.7mm) Opening
- Drop Protection: 9.9' (3m)
- Display: 6000 Count LCD
- Functions: AC Current, AC/DC Voltage, Continuity, Resistance
- Voltage: 600V AC, 1000V DC
- Current: 200A AC
- Ohms (Resistance): 60M
- AC Voltage: 600V
- DC Voltage: 1000V
- DC Polarity Indicator: Yes
- Ingress Protection: IP40
- Standard: Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation

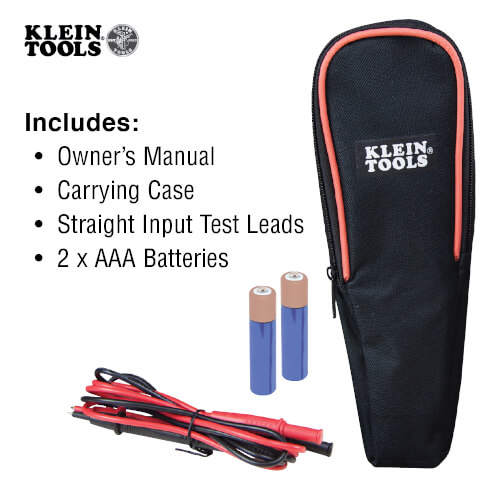

- Included: Carrying Case, Instruction Manual, Straight Input Test Leads, and 2 x 1.5V AAA Batteries
- Overall Length: 8.39'' (213.1 mm)
- Overall Height: 1.38'' (35.1 mm)
- Overall Width: 2.12'' (53.8 mm)
- Weight: 6.40 oz (180.0g)
Specs
–
| Product Type: | Fork Meter |
|---|---|
| Length (Inches): | 8-38/100" |
| Battery Type: | AAA |
| AC Volts: | 600 |
| DC Volts: | 1000 |
