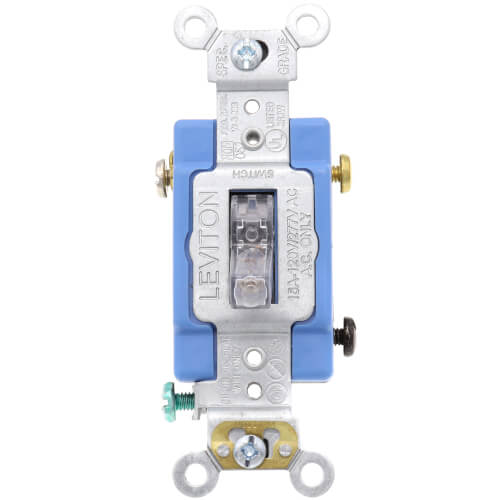

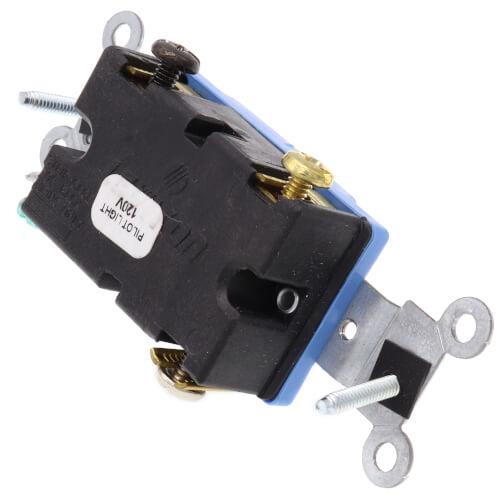

Single-Pole, LIT WHEN ON Pilot Light Toggle Switch, 15A - Clear (120V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.78 each
In Stock
Get 8 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
1/2 HP
Clear
Thermoplastic
Description
–
The Leviton 1201-PLC is a toggle single-pole AC quiet switch in red color. Leviton is a smart choice for today's commercial, residential and industrial buildings. It offers a wide range of devices for different applications. Leviton's AC toggle switches are specially made for industrial use. These switches are intended to support extra heavy-duty applications.
This Leviton 1201-PLC single-pole AC quiet switch features a lighted handle, it is illuminated when it's on. It has a thermoplastic body and polycarbonate toggle. It is a self-grounding device, it has a voltage rating of 120 Volts and amperage rating of 15 Amp. This Leviton 1201-PLC toggle single-pole AC quiet switch has a minimum endurance of 50000 cycles. Buy with confidence and enjoy years of reliable use.
Product Features
Product Specifications
This Leviton 1201-PLC single-pole AC quiet switch features a lighted handle, it is illuminated when it's on. It has a thermoplastic body and polycarbonate toggle. It is a self-grounding device, it has a voltage rating of 120 Volts and amperage rating of 15 Amp. This Leviton 1201-PLC toggle single-pole AC quiet switch has a minimum endurance of 50000 cycles. Buy with confidence and enjoy years of reliable use.
Product Features
- Withstands 1500 volt for 1 minute
- 100 cycles of OL at 4.8 times rated current
- Polycarbonate toggle has high-impact strength and withstands elevated operating temperatures
- Features lighted handle
Product Specifications
- HP Rating: 1/2HP-120V
- Max. Amperage: 12 Amp
- Amperage: 15 Amp
- Voltage: 120 Volt
- Grounding: Self-Grounding
- Dielectric Voltage: Withstands 1500V for 1 minute
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Temperature Rise: Maximum 30 degrees C rise
- Endurance: 50,000 cycles minimum
- Flammability: Rated V-2 per UL94
- Operating Temperature: -40ºC to 65ºC
- Strap Material: .048” Thick Galvanized Steel
- Base Material: Thermoplastic
- Toggle: Polycarbonate
- Cover Material: Thermoplastic
- Contact Material: Silver Alloy
- Terminal Screws: Brass 8-32
- Grounding Screw: Brass 8-32
- Ground Clips: Brass
- Color: Clear
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
- Product ID: Ratings are permanently marked on device
- Torque Range: 12-14 inch pounds
- Feature: Pilot Light - Illuminated ON - Req. Neutral
- Actuator Material: Polycarbonate
- Body Material: Thermoplastic
- Strap Material: Steel
Specs
–
| Type: | Single Pole |
|---|---|
| Voltage: | 120v |
| Horse Power: | 1/2 |
| Ground: | Self Grounding |
| Poles: | 1 |
| Color: | Clear |
| Features: | Lighted Handle |
| Material: | Thermoplastic |
