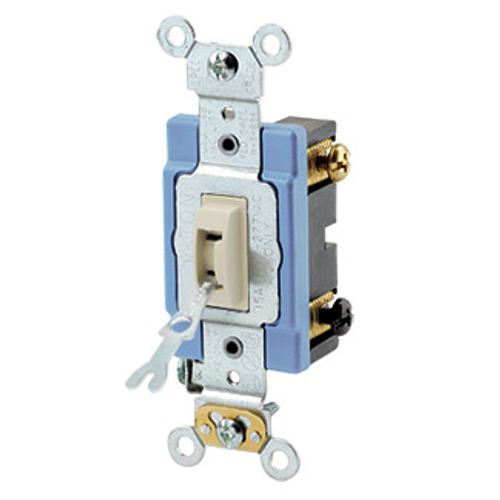

15A, 120/277V Toggle Locking 3-way AC Quiet Switch, Self Grounding, Back & Side Wired, (Ivory)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$20.45 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Extra Heavy-Duty Industrial
15 Amps
Ivory
10 years Warranty
Description
–
Features
Specifications
- Leviton's Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Specifications
- Contact Material: Silver Alloy
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Screw Terminal Torque: 14-18 in-lbs
- Operating Temperature: -40 °C to 65 °C
- Function: 3-Way
- Country of Origin: Please Contact Customer Service
- Ground Clips: Brass
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Dielectric Voltage: Withstands 1500V for 1 minute
- UL Fed Spec WS896E: File #E7458
- Grounding Screw: Brass 8-32
- Flammability: Rated V-2 per UL 94
- UL Standard: UL 20
- Endurance: 50,000 cycles minimum
- RoHS: Compliant
- Color: Ivory
- Termination: Back or Side Wire
- Device Type: Tamper-Resistant Toggle Switch
- Toggle: Polycarbonate
- Max. Amperage: 12 Amp
- NEMA: WD-1 & WD-6
- Temperature Rise: Maximum 30 degress C rise
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Cover Material: Thermoplastic
- Warranty: 10-Year Limited
- CSA C22.2 No. 111: File #152105
- Base Material: Thermoplastic
- Grounding: Self-Grounding
- Product ID: Ratings are permanently marked on device
- Amperage: 15 A
- Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
- NOM: 57
- RoHS Compliant: FALSE
- HP Rating: 1/2HP-120V 2HP-240V
- Strap Material: .048Thick Galvanized Steel
- Terminal Screws: Brass 8-32
- ANSI: C-73
- Voltage: 120 VAC
Specs
–
| Grade: | Extra Heavy-Duty Industrial |
|---|---|
| Amperage: | 15 |
| Terminations: | Side Wire Back Wire |
| Ground: | Self-Grounding |
| Color: | Ivory |
| NEMA Rating: | WD-1 |
| Product Type: | Tamper-Resistant Toggle Switch |
| Warranty: | 10 years |
