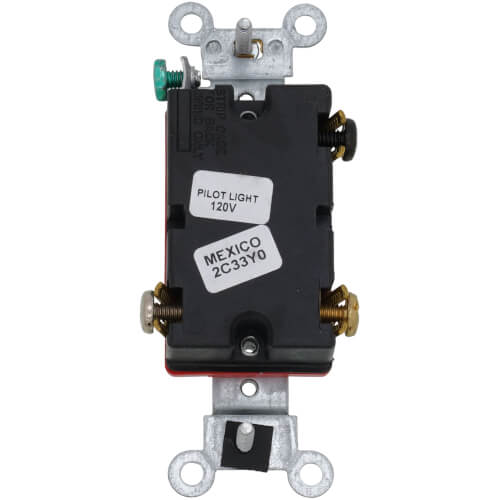

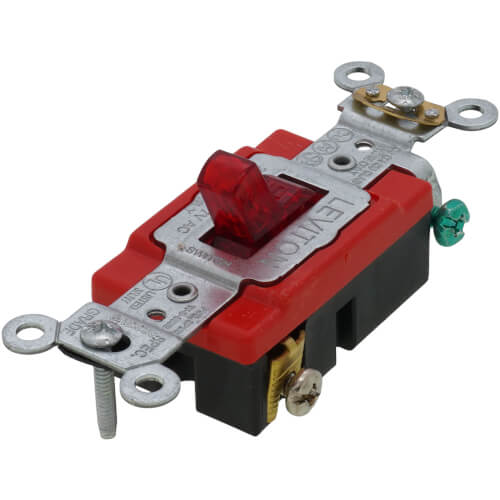

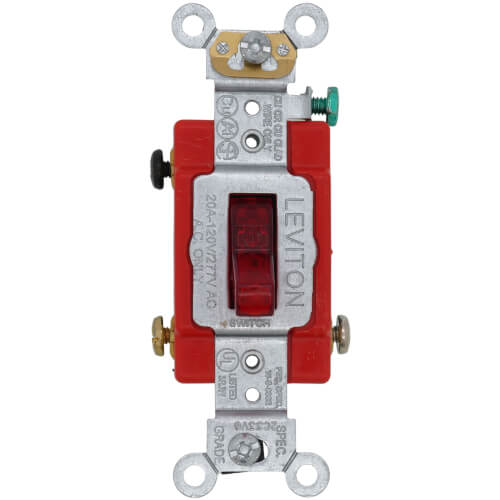

Single-Pole, LIT WHEN ON Pilot Light Toggle Switch, 20A - Red (120V)

The Leviton 1221-PLR is a single-pole AC quiet switch from Leviton's product line of Industrial Grade switches for extra heavy-duty applications. This particular model comes in red. This single-pole AC quiet switch is designed to withstand demanding environments. It is very easy to install. The model features impact-resistant thermoplastic nylon body material. Leviton offers switches in a wide variety of wiring options, colors and other features. This single-pole switch is perfect for use in industrial grade. This is a self-grounded type unit. The Leviton brand offers you the highest in production standards according to National Electrical Manufacturers Association.

Features:

• For extra heavy-duty applications represent top-of-the-line quality and peak performance
• Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability

Specifications:

• Amperage: 20 Amp
• Voltage: 120 Volt
• Grounding: Self-Grounding
• Dielectric Voltage: Withstands 1500V for 1 minute
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Endurance: 50,000 cycles minimum
• Color: Red
• Grounding: Self Grounding
• Feature: Pilot Light - Illuminated ON - Req. Neutral
• Actuator Material: Polycarbonate
• Body Material: Thermoplastic
• Strap Material: Steel
