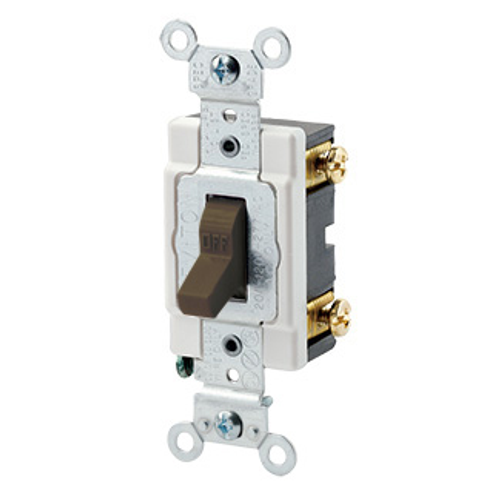

20A, 120/277V Toggle Single-pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Back & Side Wired (Brown)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$15.91 each
In Stock
Get 12 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic
20 Amps
Brown
10 years Warranty
Heavy-Duty Industrial
Description
–
Features
Specifications
- Leviton's Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Specifications
- HP Rating: 1HP-120V 2HP-240V-277V
- UL Fed Spec WS896E: File #E7458
- Contacts: Silver-Cadmium .031 Thick
- Color: Brown
- Dielectric Voltage: Withstands 1500V for 1 minute
- Warranty: 10-Year Limited
- Actuator Material: Thermoplastic
- Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
- Amperage: 20 A
- ANSI: C-73
- Base Material: PBT
- Termination: Back or Side Wire
- CSA C22.2 No. 111: File #152105
- Voltage: 120/277 VAC
- Grade: Heavy-Duty Industrial Specification Grade
- Country of Origin: United States
- Device Type: Toggle Switch
- NOM: 57
- Warranty: 10-Year Limited
- Terminal Screws: Steel 8-32
- Product ID: Stamped on Strap
- Cover Material: Nylon
- Operating Temperature: -40 °C to 65 °C
- UL Standard: UL 20
- Body Material: Thermoplastic
- Strap Material: Steel
- RoHS Compliant: TRUE
- NEMA: WD-1 & WD-6
- Temperature Rise: Maximum 30 degrees C rise
- Function: Single-Pole
- Flammability: Rated V-2 per UL 94
- Screw Terminal Torque: 14-18 in-lbs
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Toggle: Polycarbonate
- Grounding: Self-Grounding
Specs
–
| Terminations: | Back Wire Side Wire |
|---|---|
| Material: | Thermoplastic |
| Amperage: | 20 |
| Color: | Brown |
| Warranty: | 10 years |
| Product Type: | Toggle Switch |
| Grade: | Heavy-Duty Industrial |
| NEMA Rating: | WD-1 |
| Ground: | Self-Grounding |
