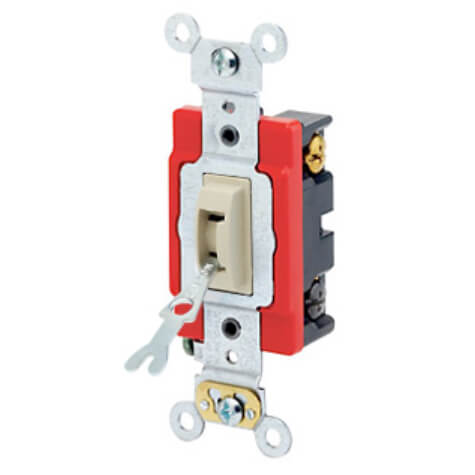

4-Way Industrial Grade, Self Grounding Locking Toggle Switch, 20A - Ivory (120/277V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$42.85 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
277v, 120v
2, 1 HP
Ivory
20 Amps
10 Year Limited Warranty
Description
–
20 Amp, 120/277 Volt, Toggle Locking 4-Way AC Quiet Switch, Industrial Grade, Self Grounding, Back & Side Wired, - Ivory
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Specifications:
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Specifications:
- HP Rating: 1HP-120V 2HP-240V
- Max. Amperage: 16 Amp
- Amperage: 20 Amp
- Voltage: 120/277 VAC
- Grounding: Self-Grounding
- Dielectric Voltage: Withstands 1500V for 1 minute
- Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
- Temperature Rise: Maximum 30 degress C rise
- Endurance: 50,000 cycles minimum
- Flammability: Rated V-2 per UL94
- Operating Temperature: -40ºC to 65ºC
- Strap Material: .048” Thick Galvanized Steel
- Base Material: Thermoplastic
- Toggle: Polycarbonate
- Cover Material: Thermoplastic
- Contact Material: Silver Alloy
- Terminal Screws: Brass 8-32
- Grounding Screw: Brass 8-32
- Ground Clips: Brass
- Color: Ivory
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
- Product ID: Ratings are permanently marked on device
- Torque Range: 12-14 inch pounds
Specs
–
| Type: | 4-Way |
|---|---|
| Voltage: | 277v 120v |
| Ground: | Self Grounding |
| Horse Power: | 2 1 |
| Terminations: | Back Side |
| Color: | Ivory |
| Amperage: | 20 |
| Warranty: | 10 Year Limited |
