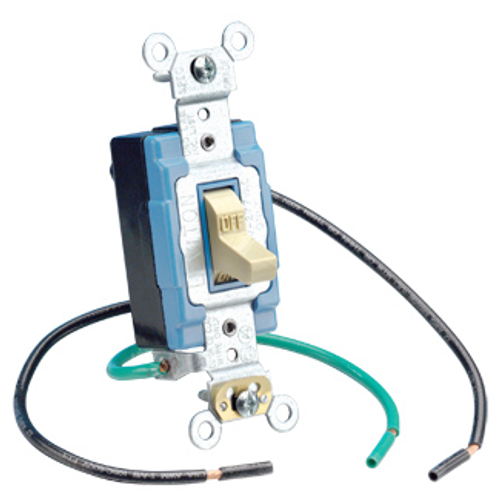

15A, 120/277V Toggle Pigtail Single-pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (Ivory)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$9.57 each
Out of Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 Amps
Ivory
2 years Warranty
Thermoplastic
Extra Heavy-Duty Industrial
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- NEMA: WD-1 & WD-6
- Flammability: Rated V-2 per UL 94
- Current Interrupting: Certified for current interrupting at full rated current
- Grounding Leads: 6", #12 AWG THHN
- Terminal Accom.: 14-10 AWG
- HP Rating: 1/2HP-120V 2HP-240V-277V
- NOM: 57
- Country of Origin: Mexico
- Terminal Leads: 6", #12 AWG THHN
- UL Fed Spec WS896E: File #E7458
- UL Standard: UL 20
- Product ID: Ratings are permanently marked on device
- Operating Temperature: -40 °C to 65 °C
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Actuator Material: Thermoplastic
- Termination: Pre-Wired Leads
- Temperature Rise: Maximum 30 degress C rise
- Torque Range: 12-14 inch pounds
- Mounting Screws: Triple Combination Head, Steel
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Base Material: Urea
- Maximum Working Voltage: 120/277 VAC as rated
- CSA C22.2 No. 111: File #152105
- Mounting Strap: Steel
- Contacts: Silver-Cadmium .031 Thick
- Voltage: 120/277 VAC
- Strap Material: .048Thick Galvanized Steel
- Dielectric Voltage Withstand: 1500V minimum
- Max. Amperage: 12 Amp
- Function: Single-Pole
- Grounding: Self-Grounding
- Amperage: 15 A
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Device Type: Toggle Switch
- Color: Ivory
- ANSI: C-73
- Warranty: 2-Year Limited
- Body Material: Thermoplastic
- Termination: Pre-Wired Leads
- RoHS Compliant: FALSE
- Cover Material: Urea
Specs
–
| Country of Origin: | Mexico |
|---|---|
| NEMA Rating: | WD-1 |
| Amperage: | 15 |
| Color: | Ivory |
| Warranty: | 2 years |
| Product Type: | Toggle Switch |
| Terminations: | Pre-Wired Leads |
| Material: | Thermoplastic |
| Ground: | Self-Grounding |
| Grade: | Extra Heavy-Duty Industrial |
