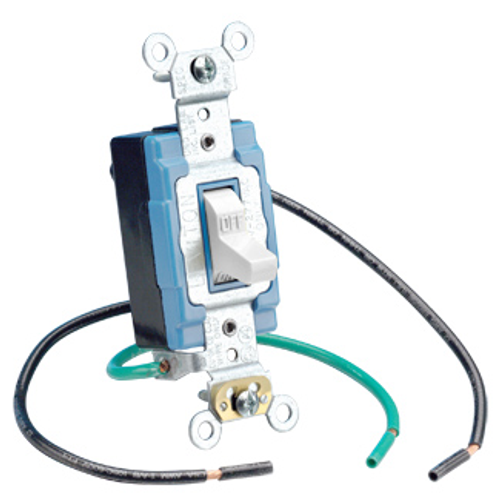

15A, 120/277V Toggle Pigtail Single-pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$9.57 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Extra Heavy-Duty Industrial
2 years Warranty
15 Amps
Thermoplastic
White
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Maximum Working Voltage: 120/277 VAC as rated
- Temperature Rise: Maximum 30 degress C rise
- Color: White
- HP Rating: 1/2HP-120V 2HP-240V-277V
- NEMA: WD-1 & WD-6
- Strap Material: .048Thick Galvanized Steel
- Terminal Accom.: 14-10 AWG
- Contacts: Silver-Cadmium .031 Thick
- Grounding: Self-Grounding
- ANSI: C-73
- Function: Single-Pole
- Dielectric Voltage Withstand: 1500V minimum
- Current Interrupting: Certified for current interrupting at full rated current
- Base Material: Urea
- Flammability: Rated V-2 per UL 94
- Operating Temperature: -40 °C to 65 °C
- Body Material: Thermoplastic
- NOM: 57
- Torque Range: 12-14 inch pounds
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Mounting Screws: Triple Combination Head, Steel
- UL Standard: UL 20
- Country of Origin: Mexico
- Max. Amperage: 12 Amp
- Voltage: 120/277 VAC
- Termination: Pre-Wired Leads
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Grounding Leads: 6", #12 AWG THHN
- UL Fed Spec WS896E: File #E7458
- Termination: Pre-Wired Leads
- Terminal Leads: 6", #12 AWG THHN
- Device Type: Toggle Switch
- Product ID: Ratings are permanently marked on device
- CSA C22.2 No. 111: File #152105
- RoHS Compliant: FALSE
- Cover Material: Urea
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Actuator Material: Thermoplastic
- Warranty: 2-Year Limited
- Mounting Strap: Steel
- Amperage: 15 A
Specs
–
| Product Type: | Toggle Switch |
|---|---|
| Country of Origin: | Mexico |
| Ground: | Self-Grounding |
| Grade: | Extra Heavy-Duty Industrial |
| Warranty: | 2 years |
| Amperage: | 15 |
| Terminations: | Pre-Wired Leads |
| NEMA Rating: | WD-1 |
| Material: | Thermoplastic |
| Color: | White |
