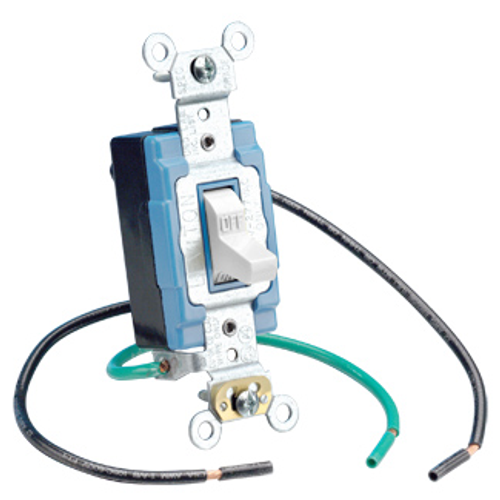

15A, 120/277V 3-way Toggle AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$15.06 each
Out of Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
2 years Warranty
Thermoplastic
Extra Heavy-Duty Industrial
15 Amps
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Body Material: Thermoplastic
- Maximum Working Voltage: 120/277 VAC as rated
- Country of Origin: Mexico
- CSA C22.2 No. 111: File #152105
- Temperature Rise: Maximum 30 degress C rise
- UL Standard: UL 20
- Dielectric Voltage Withstand: 1500V minimum
- Base Material: Urea
- NOM: 57
- Max. Amperage: 12 Amp
- Product ID: Ratings are permanently marked on device
- NEMA: WD-1 & WD-6
- RoHS Compliant: FALSE
- Function: 3-Way
- Torque Range: 12-14 inch pounds
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Warranty: 2-Year Limited
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Contacts: Silver-Cadmium .031 Thick
- Flammability: Rated V-2 per UL 94
- Current Interrupting: Certified for current interrupting at full rated current
- Grounding: Self-Grounding
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Termination: Pre-Wired Leads
- Voltage: 120/277 VAC
- Actuator Material: Thermoplastic
- Mounting Screws: Triple Combination Head, Steel
- ANSI: C-73
- Grounding Leads: 6", #12 AWG THHN
- Termination: Pre-Wired Leads
- Device Type: Toggle Switch
- Terminal Leads: 6", #12 AWG THHN
- Terminal Accom.: 14-10 AWG
- Operating Temperature: -40 °C to 65 °C
- Cover Material: Urea
- Amperage: 15 A
- Strap Material: .048Thick Galvanized Steel
- Color: White
- HP Rating: 1/2HP-120V 2HP-240V-277V
- UL Fed Spec WS896E: File #E7458
- Mounting Strap: Steel
Specs
–
| Ground: | Self-Grounding |
|---|---|
| Terminations: | Pre-Wired Leads |
| Color: | White |
| Warranty: | 2 years |
| NEMA Rating: | WD-1 |
| Product Type: | Toggle Switch |
| Material: | Thermoplastic |
| Country of Origin: | Mexico |
| Grade: | Extra Heavy-Duty Industrial |
| Amperage: | 15 |
