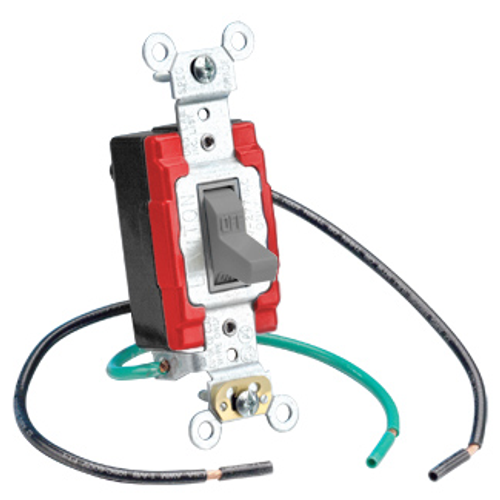

20A, 120/277V Toggle Pigtail Single-pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$16.44 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Extra Heavy-Duty Industrial
2 years Warranty
20 Amps
Gray
Thermoplastic
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Current Interrupting: Certified for current interrupting at full rated current
- Flammability: Rated V-2 per UL 94
- UL Fed Spec WS896E: File #E7458
- Max. Amperage: 12 Amp
- Termination: Pre-Wired Leads
- Mounting Screws: Triple Combination Head, Steel
- Mounting Strap: Steel
- Torque Range: 12-14 inch pounds
- Termination: Pre-Wired Leads
- Dielectric Voltage Withstand: 1500V minimum
- Body Material: Thermoplastic
- Temperature Rise: Maximum 30 degress C rise
- UL Standard: UL 20
- ANSI: C-73
- Strap Material: .048Thick Galvanized Steel
- Grounding Leads: 6", #12 AWG THHN
- Terminal Accom.: 14-10 AWG
- Device Type: Toggle Switch
- Country of Origin: Mexico
- Base Material: Urea
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Operating Temperature: -40 °C to 65 °C
- Grounding: Self-Grounding
- Maximum Working Voltage: 120/277 VAC as rated
- Terminal Leads: 6", #12 AWG THHN
- Actuator Material: Thermoplastic
- Warranty: 2-Year Limited
- NOM: 57
- Contacts: Silver-Cadmium .031 Thick
- Cover Material: Urea
- RoHS Compliant: FALSE
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Amperage: 20 A
- NEMA: WD-1 & WD-6
- Product ID: Ratings are permanently marked on device
- Function: Single-Pole
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Voltage: 120/277 VAC
- CSA C22.2 No. 111: File #152105
- Color: Gray
Specs
–
| Ground: | Self-Grounding |
|---|---|
| Grade: | Extra Heavy-Duty Industrial |
| Warranty: | 2 years |
| Amperage: | 20 |
| Terminations: | Pre-Wired Leads |
| NEMA Rating: | WD-1 |
| Product Type: | Toggle Switch |
| Country of Origin: | Mexico |
| Color: | Gray |
| Material: | Thermoplastic |
