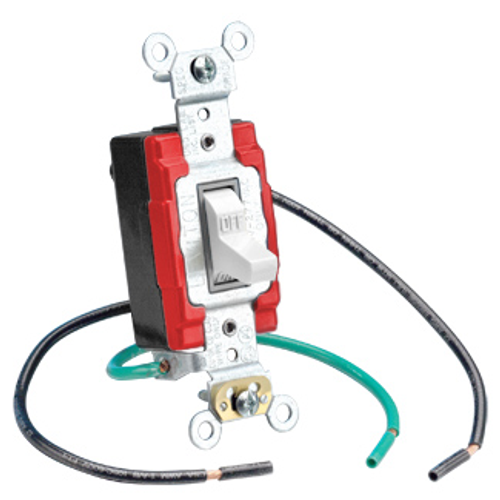

20A, 120/277V Toggle Pigtail Single-pole AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$16.44 each
Out of Stock
Get it Thu, Jul 23 - Thu, Jul 30
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
White
2 years Warranty
Thermoplastic
Extra Heavy-Duty Industrial
20 Amps
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- NEMA: WD-1 & WD-6
- Actuator Material: Thermoplastic
- Current Interrupting: Certified for current interrupting at full rated current
- Amperage: 20 A
- Product ID: Ratings are permanently marked on device
- Operating Temperature: -40 °C to 65 °C
- Base Material: Urea
- Torque Range: 12-14 inch pounds
- Strap Material: .048Thick Galvanized Steel
- Device Type: Toggle Switch
- ANSI: C-73
- Grounding Leads: 6", #12 AWG THHN
- Country of Origin: Mexico
- Function: Single-Pole
- Temperature Rise: Maximum 30 degress C rise
- Body Material: Thermoplastic
- Grounding: Self-Grounding
- Max. Amperage: 12 Amp
- Termination: Pre-Wired Leads
- NOM: 57
- UL Fed Spec WS896E: File #E7458
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- CSA C22.2 No. 111: File #152105
- Dielectric Voltage Withstand: 1500V minimum
- Terminal Leads: 6", #12 AWG THHN
- Maximum Working Voltage: 120/277 VAC as rated
- Flammability: Rated V-2 per UL 94
- Color: White
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Termination: Pre-Wired Leads
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Mounting Strap: Steel
- Cover Material: Urea
- RoHS Compliant: FALSE
- Contacts: Silver-Cadmium .031 Thick
- Mounting Screws: Triple Combination Head, Steel
- Terminal Accom.: 14-10 AWG
- Warranty: 2-Year Limited
- UL Standard: UL 20
- Voltage: 120/277 VAC
- HP Rating: 1/2HP-120V 2HP-240V-277V
Specs
–
| Color: | White |
|---|---|
| NEMA Rating: | WD-1 |
| Warranty: | 2 years |
| Country of Origin: | Mexico |
| Terminations: | Pre-Wired Leads |
| Material: | Thermoplastic |
| Grade: | Extra Heavy-Duty Industrial |
| Ground: | Self-Grounding |
| Amperage: | 20 |
| Product Type: | Toggle Switch |
