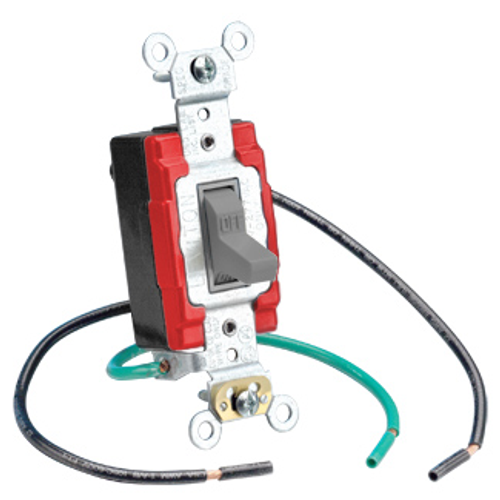

20A, 120/277V 3-way Toggle AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (Gray)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.53 each
In Stock
Get 9 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Extra Heavy-Duty Industrial
20 Amps
2 years Warranty
Gray
Thermoplastic
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Temperature Rise: Maximum 30 degress C rise
- Operating Temperature: -40 °C to 65 °C
- Color: Gray
- Max. Amperage: 12 Amp
- Termination: Pre-Wired Leads
- NOM: 57
- Dielectric Voltage Withstand: 1500V minimum
- Product ID: Ratings are permanently marked on device
- Current Interrupting: Certified for current interrupting at full rated current
- Maximum Working Voltage: 120/277 VAC as rated
- ANSI: C-73
- Termination: Pre-Wired Leads
- UL Standard: UL 20
- CSA C22.2 No. 111: File #152105
- Base Material: Urea
- Voltage: 120/277 VAC
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Grounding Leads: 6", #12 AWG THHN
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Strap Material: .048Thick Galvanized Steel
- Torque Range: 12-14 inch pounds
- RoHS Compliant: FALSE
- Grounding: Self-Grounding
- Terminal Accom.: 14-10 AWG
- Mounting Strap: Steel
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Contacts: Silver-Cadmium .031 Thick
- Device Type: Toggle Switch
- Terminal Leads: 6", #12 AWG THHN
- UL Fed Spec WS896E: File #E7458
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Flammability: Rated V-2 per UL 94
- Amperage: 20 A
- Warranty: 2-Year Limited
- Mounting Screws: Triple Combination Head, Steel
- Body Material: Thermoplastic
- Actuator Material: Thermoplastic
- Cover Material: Urea
- Country of Origin: Mexico
- Function: 3-Way
- NEMA: WD-1 & WD-6
Specs
–
| Grade: | Extra Heavy-Duty Industrial |
|---|---|
| Terminations: | Pre-Wired Leads |
| Amperage: | 20 |
| NEMA Rating: | WD-1 |
| Warranty: | 2 years |
| Product Type: | Toggle Switch |
| Color: | Gray |
| Material: | Thermoplastic |
| Country of Origin: | Mexico |
| Ground: | Self-Grounding |
