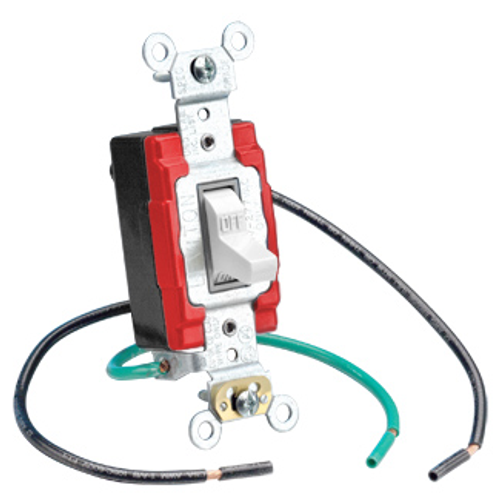

20A, 120/277V 3-way Toggle AC Quiet Switch, Heavy Duty Spec Grade, Grounding, Wire Lead 6-inch Wired (White)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$17.54 each
Out of Stock
Get it Tue, Jul 21 - Tue, Jul 28
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
20 Amps
White
Extra Heavy-Duty Industrial
Thermoplastic
2 years Warranty
Description
–
Features
Specifications
- Leviton's Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
- Product ID: Ratings are permanently marked on device
- Lead Identification: Leads identified in accordance with UL 498 (black, white & green)
- Current Interrupting: Certified for current interrupting at full rated current
- ANSI: C-73
- Function: 3-Way
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Strap Material: .048Thick Galvanized Steel
- CSA C22.2 No. 111: File #152105
- Device Type: Toggle Switch
- RoHS Compliant: FALSE
- Operating Temperature: -40 °C to 65 °C
- NOM: 57
- Grounding: Self-Grounding
- Contacts: Silver-Cadmium .031 Thick
- Cover Material: Urea
- Termination: Pre-Wired Leads
- Mounting Screws: Triple Combination Head, Steel
- Grounding Leads: 6", #12 AWG THHN
- Body Material: Thermoplastic
- Color: White
- Temperature Rise: Maximum 30 degress C rise
- Mounting Strap: Steel
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Warranty: 2-Year Limited
- Amperage: 20 A
- Country of Origin: Mexico
- Voltage: 120/277 VAC
- UL Standard: UL 20
- Flammability: Rated V-2 per UL 94
- Max. Amperage: 12 Amp
- Base Material: Urea
- Maximum Working Voltage: 120/277 VAC as rated
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Torque Range: 12-14 inch pounds
- UL Fed Spec WS896E: File #E7458
- Terminal Accom.: 14-10 AWG
- Terminal Leads: 6", #12 AWG THHN
- Dielectric Voltage Withstand: 1500V minimum
- Termination: Pre-Wired Leads
- Actuator Material: Thermoplastic
- NEMA: WD-1 & WD-6
Specs
–
| Product Type: | Toggle Switch |
|---|---|
| Amperage: | 20 |
| Color: | White |
| NEMA Rating: | WD-1 |
| Terminations: | Pre-Wired Leads |
| Grade: | Extra Heavy-Duty Industrial |
| Ground: | Self-Grounding |
| Country of Origin: | Mexico |
| Material: | Thermoplastic |
| Warranty: | 2 years |
