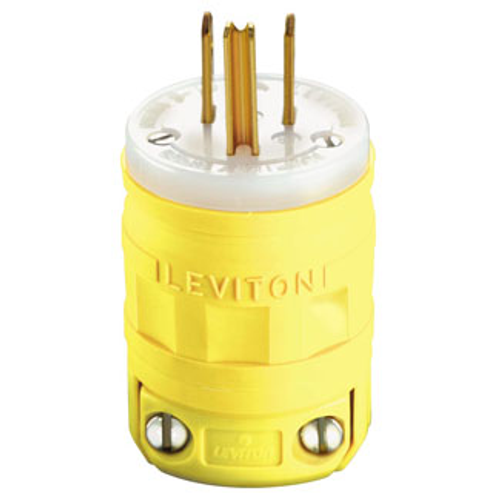

15A, 125V NEMA 5-15P, 2P, 3W, Plug, Straight Blade, Grounding, Dustguard (Yellow)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$16.40 each
In Stock
Get 10 Thu, Jul 9
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Features
- Terminal Accom.: 18-10 AWG
- Cord Range: 0.240 to 0.655
- Terminal Screws: Brass
- Body Material: Santoprene TPV
- Amperage: 15 A
- Wire Gauge: 18-12 AWG
- Voltage: 125 VAC
- Country of Origin: Mexico
- Warranty: 2-Year Limited
- Bushing: Santoprene TPV
- Grounding: Grounding
- Flammability: Rated V-2 per UL 94
- RoHS Compliant: TRUE
- Device Type: Straight Blade Plug
- UL: 498
- NOM: 57
- ANSI: C-73
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Wire: 3
- UL Fed Spec WC-596: File E13393
- Product ID: Ratings and NEMA I.D. permanently marked on device
- Compression Nut, Strain Relief: Nylon
- Dielectric Voltage: Withstands 2000V per UL498
- CSA C22.2 No. 42: File LR-406
- NEMA: WD-6
- Operating Temperature: -40 °C to 60 °C
- Assembly Screws: Steel, Zinc Plated
- Current Limiting: Full Rated Current
- Color: Yellow
- Environment: Dry
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Brand: Dustguard
- Wire Module: Thermoplastic
- Blades/Contacts: Solid Brass
- Pole: 2
Specs
–
| Country of Origin: | Mexico |
|---|
